Personality-Aware Non-verbal Behavior Generation in Dyadic Interactions
A transformer-based model that generates a listener avatar's face, hand and body motion in response to a speaker, conditioned on the listener's personality.
Demo video
We have developed a multimodal generative model that accurately simulates dyadic conversations by generating listener avatars that respond to the speaker. Our model creates different listener behaviors based on specified personality traits, such as extroversion or introversion. For example, an extroverted agent may engage with the speaker through frequent smiling and animated body language, while an introverted agent responds more subtly.
Demo: Generated Listener Avatars
To showcase our model ability to generate personalized and adaptable responses, we present three listener avatars, each with distinct personality characteristics: Extrovert, Neutral, and Introvert. Additionally, we provide videos below demonstrating various speaker and listener avatars interacting to illustrate the model capabilities.
Potential Applications
Our technology holds significant potential for developing virtual therapist assistants tailored to individual preferences. This innovation can democratize mental health support by enhancing accessibility and engagement, allowing for personalized counseling that meets individual needs without the need for psychologist visits. Imagine having a virtual therapist at home, designed to accommodate different personality types and provide customized support.
Each clip shows the generated extrovert and introvert listener avatars next to the real speaker.
Abstract
Non-verbal communication is a crucial aspect of dialogue and social interactions,
as people use various cues such as facial expressions, eye gaze, and body movements to convey emotions.
However, the way people express emotions can vary greatly depending on their personality traits.
This topic is interesting due to its real-life applications, such as creating emotionally intelligent virtual agents for customer support and virtual therapists in healthcare to provide more supportive and empathetic environment.
In this thesis, we present a new transformer-based architecture that integrates a broad range of cues, including body language and hand gestures, to generate non-verbal behavior in response to a speaker's talk, taking into account the listener's personality traits. Using the UDIVA dataset, our model outperforms existing base models that do not consider personality traits, achieving an FID score of 6.15 and P-FID score of 10.31 for facial expressions, and an FID score of 43.16 and P-FID score of 87.73 for body and hand gestures. In addition, participants in the experiment were able to correctly identify extroverted listener avatars in 86% of cases, confirming the model's ability to capture personality-driven non-verbal cues.
Method

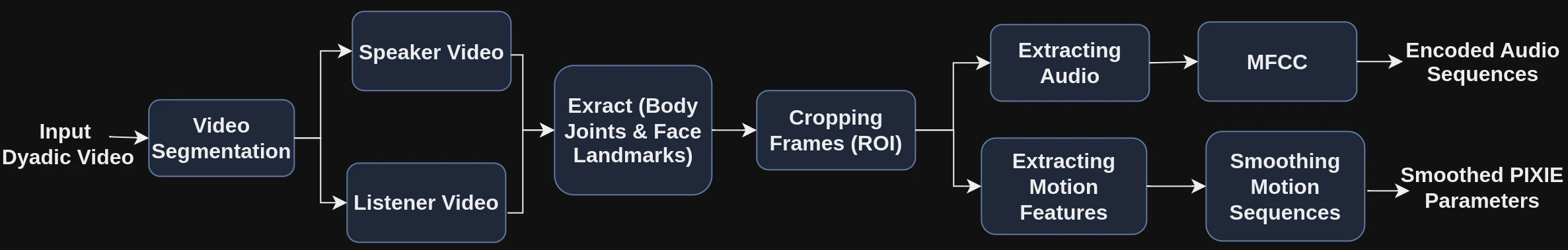

1. Data pre-processing
Our data preprocessing pipeline involves the following steps:
- Video Segmentation: We start by segmenting dyadic interaction videos into separate speaker and listener streams. This is achieved using conversation transcript timestamps, resulting in individual speaker and listener videos.
- Cropping Video Frames (ROI): Next, we define a boundary box around each participant using dataset annotations that mark body, face, and hand joint landmarks. This box is defined by the extreme points: the shoulders (leftmost and rightmost), the head (topmost), and the torso (bottommost). This step allows us to accurately crop the video frames around the participants.
- Feature Extraction (Audio & Motion): We then extract the audio sequence from the speaker's video and convert it into a mel-spectrogram using Librosa, with a sampling rate of 16 kHz. For motion feature extraction, we use PIXIE to process both speaker and listener videos. This results in the extraction of SMPL-X parameters for each video frame, which include facial expression coefficients, 3D jaw and head rotation, and upper body parameters representing relative joint positions.
- Postprocessing: However, we noticed jittering in the motion sequences generated by PIXIE. To resolve this, we applied a dual filtering strategy on the extracted parameters for each video frame. First, we used a mean average filter within a window size of 7 frames to smooth the transition between frames. Then, to minimize abrupt motion jumps while retaining motion variability, we applied a median filter with a smaller window size of 3 frames.
- Output: The final output is a refined dataset containing speaker audio features and motion features for both speaker and listener, ready for model training.

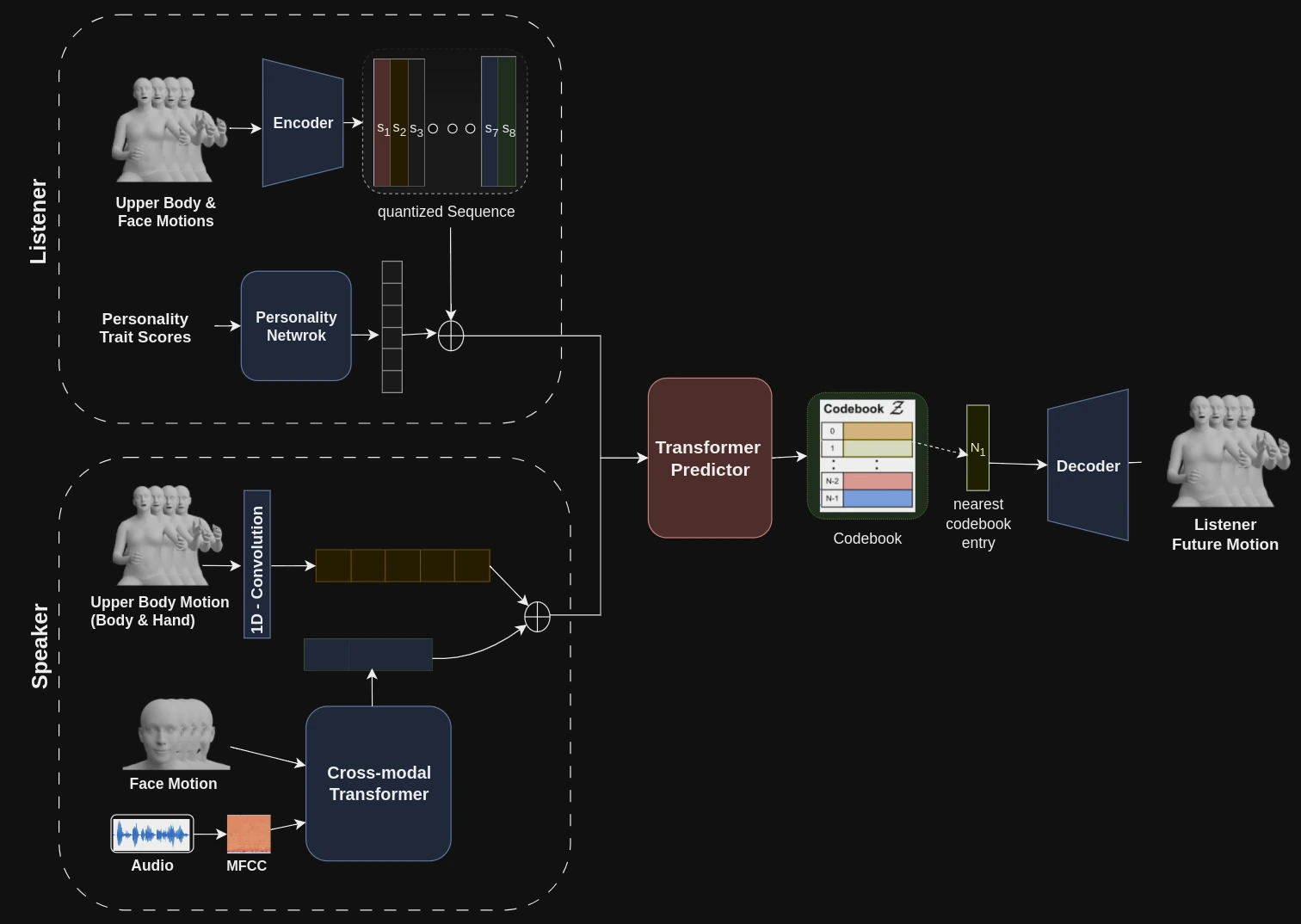

2. Model architecture
We present a model that generates personalized non-verbal behaviors in interactive avatars based on the listener's personality traits. Using a transformer architecture and a vector quantized variational autoencoder (VQ-VAE), our model produces dynamic responses.
The model integrates multimodal features from both the speaker and the listener videos. For the speaker, PIXIE extracts facial and upper body motion features from the input video, while Librosa converts the raw audio into mel-spectrogram features. These features are combined using a cross-modal transformer to capture long-range dependencies.
For the listener, we process facial and upper body past motion sequences along with a personality score. The personality score is encoded by a Personality Network into a conditioned vector, which is then concatenated with a quantized motion sequence obtained from a VQ-VAE. This VQ-VAE has learned a discrete latent space for non-verbal cues from the listener motion.
The concatenated listener features and personality vector are fed into a predictor transformer, which generates the future motion sequences for the listener, including both facial and upper body movements. This prediction is based on the combined multimodal inputs from the speaker and the listener personality traits.
Finally, the predicted sequence is matched to the closest codebook entry, and the quantized sequence is decoded to produce the final output. This output represents a personality-aware response from the listener, reflecting the multimodal inputs from the speaker.
Training process

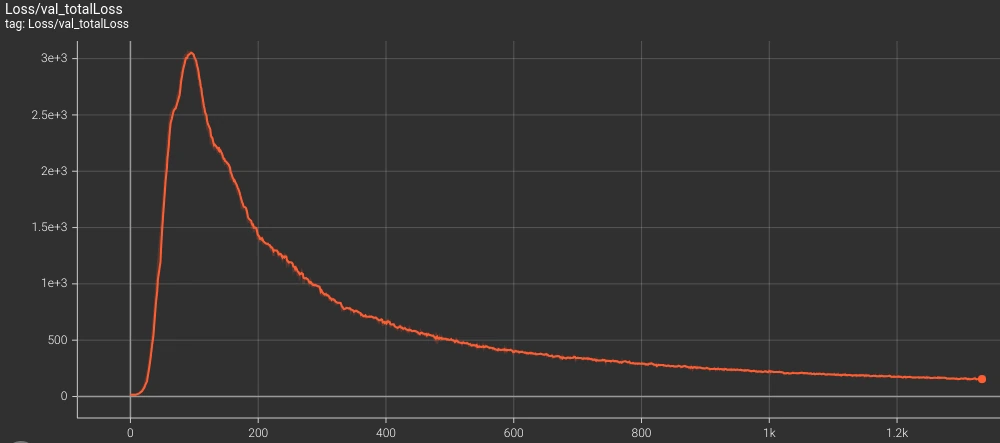

We train our model in two stages. First, the VQ-VAE is trained to learn a discrete latent space for motion sequences, creating a learned codebook. In the second stage, the transformers and personality network are trained to generate personalized responses based on the speaker's audio and motion data, along with the listener's personality traits.
Training involves teacher-forcing and random masking to improve autoregressive prediction capabilities. The Adam optimizer is used with a learning rate of 0.001, a batch size of 32, and training occurs over 200 epochs. The model's performance is evaluated based on validation loss, and the best model is selected accordingly.
Testing process
During testing, we input zero values for time steps where prior listener predictions are unavailable. Masking is adjusted to support autoregressive predictions for varying input lengths, without relying on ground truth past listener motion data.
Evaluation
We evaluated our model using a large dyadic dataset, UDIVA, and conducted extensive experiments to assess its performance. Our evaluation includes quantitative results, a user study, and qualitative analysis. We compared our model to a baseline model and demonstrated that it outperforms the baseline in both quantitative and qualitative measures, providing a more nuanced and realistic representation of listener behavior in dyadic interactions. Our model is the first of its kind to generate a listener avatar that incorporates the entire upper body, including the face, hands, and body posture, while also considering the listener's personality traits.
Quantitative results
To measure quantitative performance, we use four metrics commonly used to evaluate nonverbal behavior generation approaches. We use L2 Distance to directly measure the fit to the ground truth motion. In addition, we use the Frechet Inception Distance (FID) to measure the distributional similarity between the generated sequences and the actual ground-truth listener motion sequences present in our dataset. We also employ the Paired Frechet Inception Distance (P-FID) to evaluate the plausibility of the joint speaker-listener motions. Finally, we measure Variance of the generated motion sequence as an indicator of the variability present in the generations. A good result is achieved by low L2 Distance, low FID and P-FID, and high variability of the generated motions.
Here are the results of our quantitative evaluations:
| Face (expression and jaw) | Upper body (body and hands) | |||||||
|---|---|---|---|---|---|---|---|---|
| Model | L2 ↓ | FID ↓ | P-FID ↓ | Var ↑ | L2 ↓ | FID ↓ | P-FID ↓ | Var ↑ |
| Personality-agnostic baseline | 32.45 | 7.67 | 10.47 | 1.39 | 75.29 | 58.87 | 96.82 | 0.97 |
| Ours, joint body/face representation | 33.05 | 8.65 | 11.94 | 1.49 | 74.41 | 51.90 | 91.49 | 0.84 |
| Ours, random extraversion scores | 32.76 | 7.58 | 10.83 | 1.61 | 73.23 | 47.56 | 91.33 | 1.13 |
| Ours | 32.12 | 6.15 | 10.31 | 1.54 | 72.26 | 43.16 | 87.73 | 1.03 |
User study
We conducted two experiments using Google Forms to evaluate our final personality-aware model's ability to generate distinguishable listener behaviors based on extraversion personality traits. In the first experiment, we generated two listener avatars using the highest and lowest extraversion scores from our dataset and asked participants to identify which one exhibited more extraverted behavior.
In the second experiment, we compared our personality-aware model to base model or personality-agnostic model by presenting participants with videos featuring two listener avatars alongside the speaker and asking them to identify which one seemed more engaged with the speaker.
We randomly selected 6 listeners from the test set for each experiment and employed the highest and lowest extraversion scores from our dataset to condition each of the 6 listeners. For the second experiment, we used each of the 6 randomly selected listeners as inputs for both models. We also randomized the positions of the two listener avatars in each video to prevent any bias.
The study involved 20 participants, and the results showed that our personality-aware model was capable of accurately differentiating behaviors between introverted and extroverted listeners in 86% of the cases. Moreover, in 71% of the cases, participants showed a preference for our personality-aware model over the personality-agnostic/base model when utilizing actual extraversion scores.
Qualitative results

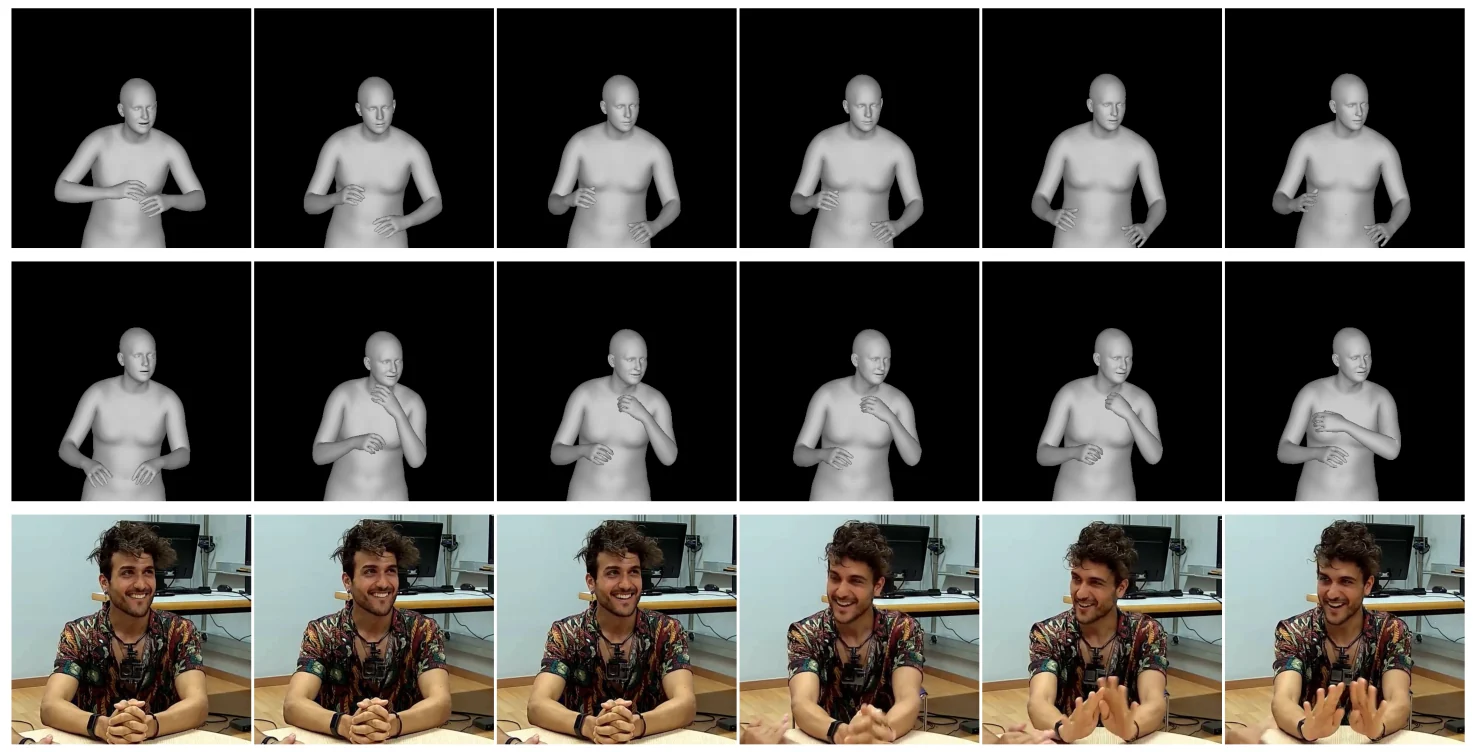

Our model results, as depicted in the figure below, present a comparative analysis of the speaker's frame sequence with the generated introverted and extroverted listener avatar sequences. The top row of the figure showcases the introverted listener, characterized by minimal facial expressions, limited eye contact, and restrained body language. In contrast, the middle row features the extroverted listener, who demonstrates more active engagement through frequent smiling, leaning towards the speaker, and dynamic hand gestures. The bottom row represents the speaker's frame sequence. This qualitative result highlights the model's ability to discern and generate listener responses that align with distinct personality traits, with the extroverted avatar displaying more pronounced engagement cues towards the speaker.
Implementation
Our project was developed using Python and PyTorch, leveraging a diverse set of tools and libraries to achieve efficient and effective machine learning outcomes.
Slurm Workload Manager was employed to handle computational resources, utilizing its Job Arrays feature to run multiple experiments in parallel. This approach optimized resource usage and significantly reduced overall runtime.
Enroot images were used for containerization, providing a consistent and isolated environment similar to Docker containers. These images were deployed on Slurm cluster GPU partitions, ensuring a stable and reproducible setup for our experiments.
NVIDIA A100-40GB GPUs: We used eight of these powerful GPUs for model training, enabling parallel processing and rapid computation required for large-scale models.
Tools and libraries
The following sub-sections will detail our implementation process and provide code snippets illustrating the use of these tools and libraries.
Data preprocessing
In this step, we preprocessed our dataset to make it suitable for model training. The main tasks included:
- Dyadic Video Segmentation: We loaded dyadic videos and segmented them into separate speaker and listener streams for each participant using their corresponding transcripts with timestamps. The data was processed in parallel by loading subdirectories of videos into batches using Python's multiprocessing.
Dyadic video segmentation code118 lines
import os
import sys
from tqdm import tqdm
import re
from moviepy.editor import *
import multiprocessing
import logging
logging.basicConfig(filename='video_sync_error.log', level=logging.ERROR)
def extract_timestamps(transcript_file):
timestamps = {}
with open(transcript_file, encoding='utf-8', errors='ignore') as f:
lines = f.readlines()
i = 0
for line in lines:
line = line.strip()
match = re.match("(\d\d):(\d\d):(\d\d),(\d\d\d) --> (\d\d):(\d\d):(\d\d),(\d\d\d)", line)
if match:
start_time = int(match.group(1)) * 3600 + int(match.group(2)) * 60 + int(match.group(3)) + int(
match.group(4)) / 1000
end_time = int(match.group(5)) * 3600 + int(match.group(6)) * 60 + int(match.group(7)) + int(
match.group(8)) / 1000
duration = end_time - start_time
if duration >= 1:
if i + 1 < len(lines):
speaker = lines[i + 1].strip().split(": ")[0]
if speaker not in timestamps:
timestamps[speaker] = []
timestamps[speaker].append((start_time, end_time))
i += 1
return timestamps
def process_subdir(subdir, recordings_dir, transcriptions_dir, output_dir):
try:
recording_subdir = os.path.join(recordings_dir, subdir)
transcription_subdir = os.path.join(transcriptions_dir, subdir)
transcript_file = os.path.join(transcription_subdir, subdir + "_talk.srt")
video_file1 = os.path.join(recording_subdir, "FC1_T.mp4")
video_file2 = os.path.join(recording_subdir, "FC2_T.mp4")
timestamps = extract_timestamps(transcript_file)
part1_timestamps = [(start_time, end_time) for start_time, end_time in timestamps.get("PART.1", [])]
part2_timestamps = [(start_time, end_time) for start_time, end_time in timestamps.get("PART.2", [])]
sub_output_dir = os.path.join(output_dir, "train", "video_sync", subdir)
if not os.path.exists(sub_output_dir):
os.makedirs(sub_output_dir)
with VideoFileClip(video_file1) as clip1:
part1_clips = [clip1.subclip(start_time, min(end_time, clip1.duration)) for start_time, end_time in
part1_timestamps]
part1_clips = concatenate_videoclips(part1_clips)
part1_only_listening_clips = concatenate_videoclips(
[clip1.subclip(start_time, min(end_time, clip1.duration)) for start_time, end_time in
part2_timestamps])
part1_clips.write_videofile(os.path.join(sub_output_dir, "part1_speak_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part1_speak_all_body_pixie.mp3"),
remove_temp=False)
part1_only_listening_clips.write_videofile(
os.path.join(sub_output_dir, "part1_list_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part1_list_all_body_pixie.mp3"),
remove_temp=True)
with VideoFileClip(video_file2) as clip2:
part2_clips = [clip2.subclip(start_time, min(end_time, clip2.duration)) for start_time, end_time in
part2_timestamps]
part2_clips = concatenate_videoclips(part2_clips)
part2_only_listening_clips = concatenate_videoclips(
[clip2.subclip(start_time, min(end_time, clip2.duration)) for start_time, end_time in
part1_timestamps])
part2_clips.write_videofile(os.path.join(sub_output_dir, "part2_speak_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part2_speak_all_body_pixie.mp3"),
remove_temp=False)
part2_only_listening_clips.write_videofile(
os.path.join(sub_output_dir, "part2_list_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part2_list_all_body_pixie.mp3"),
remove_temp=True)
except Exception as e:
logging.exception(f"An error occurred while processing subdirectory {subdir}: {e}")
def process_batch(batch, recordings_dir, transcriptions_dir, output_dir):
try:
with multiprocessing.Pool(processes=multiprocessing.cpu_count()) as pool:
pool.starmap(process_subdir, [(subdir, recordings_dir, transcriptions_dir, output_dir) for subdir in batch])
except Exception as e:
logging.exception(f"An error occurred while processing batch {batch}: {e}")
if __name__ == "__main__":
if len(sys.argv) != 3:
print("Usage: python video_sync.py <input_dir> <output_dir>")
sys.exit(1)
input_dir = sys.argv[1]
output_dir = sys.argv[2]
recordings_dir = os.path.join(input_dir, "train/recordings")
transcriptions_dir = os.path.join(input_dir, "train/transcriptions")
# Read subdirectories
subdirs = [d for d in os.listdir(recordings_dir) if os.path.isdir(os.path.join(recordings_dir, d))]
# Set the number of batches and number of processes
batch_size = 11 # number of subdirectories to process in each batch
num_batches = len(subdirs) // batch_size + 1
# Divide the subdirs into batches
batches = [subdirs[i:i + batch_size] for i in range(0, len(subdirs), batch_size)]
print(f"Number of subdirectories {len(subdirs)}, processed in {num_batches} batches, with batch size {batch_size}")
# Process batches
for i, batch in enumerate(batches):
print(f"Processing batch {i + 1} of {len(batches)}")
process_batch(batch, recordings_dir, transcriptions_dir, output_dir)- Cropping Video Frames: We cropped both speaker and listener videos frames around each participant using the corresponding dataset annotations for each participant.
Cropping video frames code185 lines
import os
import sys
from tqdm import tqdm
from moviepy.editor import *
import multiprocessing
import logging
import cv2
import argparse
import h5py
import zipfile
import numpy as np
import io
logging.basicConfig(filename='video_crop_error.log', level=logging.ERROR)
def crop_body_from_video(avg_landmarks, frame):
avg_landmarks = avg_landmarks[:6, :2]
# Get the x and y coordinates of the leftmost, rightmost, topmost and bottommost landmarks
x_left = int(min(avg_landmarks[:, 0]))
x_right = int(max(avg_landmarks[:, 0]))
y_top = int(min(avg_landmarks[:, 1]))
y_bottom = int(max(avg_landmarks[:, 1]))
# Add 65% to each side of the bounding box
# Add 100% to top and bottom of the bounding box
width = x_right - x_left
height = y_bottom - y_top
x_left -= int(0.65 * width)
x_right += int(0.65 * width)
y_top -= int(1.00 * height)
y_bottom += int(1.00 * height)
# Get the frame dimensions
frame_height, frame_width, _ = frame.shape
# Validate the bounding box coordinates
x_left = max(0, x_left)
x_right = min(frame_width, x_right)
y_top = 35
y_bottom = frame_height
# Crop the frame to the bounding box
cropped_frame = frame[y_top:y_bottom, x_left:x_right]
# Resize the cropped frame to the target size
target_size = (820, 935)
resized_frame = cv2.resize(cropped_frame, target_size)
return resized_frame
def draw_bounding_box_on_video(avg_landmarks, frame):
frame_rgb = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
avg_landmarks = avg_landmarks[:6, :2]
# Get the x and y coordinates of the leftmost, rightmost, topmost and bottommost landmarks
x_left = int(min(avg_landmarks[:, 0]))
x_right = int(max(avg_landmarks[:, 0]))
y_top = int(min(avg_landmarks[:, 1]))
y_bottom = int(max(avg_landmarks[:, 1]))
# Add 65% to each side of the bounding box
width = x_right - x_left
height = y_bottom - y_top
x_left -= int(0.65 * width)
x_right += int(0.65 * width)
y_top -= int(1.00 * height)
y_bottom += int(1.00 * height)
# Draw bounding box on frame
cv2.rectangle(frame_rgb, (x_left, y_top), (x_right, y_bottom), (0, 255, 0), 2)
# Convert frame back to BGR
frame_bgr = cv2.cvtColor(frame_rgb, cv2.COLOR_RGB2BGR)
return frame_bgr
def get_average_landmarks(landmarks):
avg_landmarks = {}
for part in landmarks.keys():
if landmarks[part]:
avg_landmarks[part] = np.mean(landmarks[part], axis=0)
return avg_landmarks
def filter_body_landmarks(l):
body_joints = [9, 12, 13, 14, 16, 17, 18, 19, 20, 21]
return l[body_joints]
def extract_landmarks(path_to_zip_1, path_to_zip_2, all=False):
with zipfile.ZipFile(path_to_zip_1) as zip1, zipfile.ZipFile(path_to_zip_2) as zip2:
zip1_file = zip1.namelist()[0]
zip2_file = zip2.namelist()[0]
with io.BytesIO(zip1.read(zip1_file)) as f1, io.BytesIO(zip2.read(zip2_file)) as f2:
landmarks = {"PART.1": [], "PART.2": []}
with h5py.File(f1, "r") as hdf5_1, h5py.File(f2, "r") as hdf5_2:
for key_frame in hdf5_1.keys():
if "body" not in hdf5_1[key_frame]:
continue
landmarks_1 = hdf5_1[key_frame]["body"]["landmarks"][()] if "landmarks" in hdf5_1[key_frame]["body"].keys() else None
if not all and landmarks_1 is not None:
landmarks_1 = filter_body_landmarks(landmarks_1).astype(int)
landmarks["PART.1"].append(landmarks_1)
for key_frame in hdf5_2.keys():
if "body" not in hdf5_2[key_frame]:
continue
landmarks_2 = hdf5_2[key_frame]["body"]["landmarks"][()] if "landmarks" in hdf5_2[key_frame]["body"].keys() else None
if not all and landmarks_2 is not None:
landmarks_2 = filter_body_landmarks(landmarks_2).astype(int)
landmarks["PART.2"].append(landmarks_2)
return landmarks
def process_subdir(subdir, video_sync_dir, annotations_dir, output_dir):
try:
video_sync_subdir = os.path.join(video_sync_dir, subdir)
annotations_dir_subdir = os.path.join(annotations_dir, subdir)
annotations_file_part1 = os.path.join(annotations_dir_subdir, "FC1_T", "annotations_raw_unmasked.zip")
annotations_file_part2 = os.path.join(annotations_dir_subdir, "FC2_T", "annotations_raw_unmasked.zip")
video_file1 = os.path.join(video_sync_subdir, "part1_speak_all_body_pixie.mp4")
video_file2 = os.path.join(video_sync_subdir, "part1_list_all_body_pixie.mp4")
video_file3 = os.path.join(video_sync_subdir, "part2_speak_all_body_pixie.mp4")
video_file4 = os.path.join(video_sync_subdir, "part2_list_all_body_pixie.mp4")
landmarks = extract_landmarks(annotations_file_part1, annotations_file_part2, all=False)
avg_landmarks = get_average_landmarks(landmarks)
sub_output_dir = os.path.join(output_dir, "train", "video_crop", subdir)
if not os.path.exists(sub_output_dir):
os.makedirs(sub_output_dir)
with VideoFileClip(video_file1) as clip1:
clip1 = clip1.fl_image(lambda frame: crop_body_from_video(avg_landmarks['PART.1'], frame))
clip1.write_videofile(os.path.join(sub_output_dir, "part1_speak_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part1_speak_all_body_pixie.mp3"),
remove_temp=False)
with VideoFileClip(video_file2) as clip2:
clip2 = clip2.fl_image(lambda frame: crop_body_from_video(avg_landmarks['PART.1'], frame))
clip2.write_videofile(os.path.join(sub_output_dir, "part1_list_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part1_list_all_body_pixie.mp3"),
remove_temp=True)
with VideoFileClip(video_file3) as clip3:
clip3 = clip3.fl_image(lambda frame: crop_body_from_video(avg_landmarks['PART.2'], frame))
clip3.write_videofile(os.path.join(sub_output_dir, "part2_speak_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part2_speak_all_body_pixie.mp3"),
remove_temp=False)
with VideoFileClip(video_file4) as clip4:
clip4 = clip4.fl_image(lambda frame: crop_body_from_video(avg_landmarks['PART.2'], frame))
clip4.write_videofile(os.path.join(sub_output_dir, "part2_list_all_body_pixie.mp4"),
temp_audiofile=os.path.join(sub_output_dir, "part2_list_all_body_pixie.mp3"),
remove_temp=True)
except Exception as e:
logging.exception(f"An error occurred while processing subdirectory {subdir}: {e}")
def process_batch(batch, video_sync_dir, annotations_dir, output_dir):
try:
with multiprocessing.Pool(processes=multiprocessing.cpu_count()) as pool:
pool.starmap(process_subdir, [(subdir, video_sync_dir, annotations_dir, output_dir) for subdir in batch])
except Exception as e:
logging.exception(f"An error occurred while processing batch {batch}: {e}")
if __name__ == "__main__":
if len(sys.argv) != 3:
print("Usage: python crop.py <input_dir> <output_dir>")
sys.exit(1)
video_sync_dir = sys.argv[1]
output_dir = sys.argv[2]
annotations_dir = "/home/FAREWELL-CHANNEL_2/ANNO/"
if not os.path.exists(output_dir):
os.makedirs(output_dir)
subdirs = os.listdir(video_sync_dir)
subdirs = sorted([s for s in subdirs if os.path.isdir(os.path.join(video_sync_dir, s))])
batches = [subdirs[i:i + 10] for i in range(0, len(subdirs), 10)]
for batch in tqdm(batches):
process_batch(batch, video_sync_dir, annotations_dir, output_dir)- Extracting Motion Features: We used PIXIE to process both speaker and listener videos.
This allows us to extract SMPL-X parameters for each video frame, including the 3D body shape, pose, hand articulation, and facial expressions.
Extracting motion features code220 lines
import argparse
import cv2
import numpy as np
import os
import pickle
import sys
import pdb
import torch
import torch.backends.cudnn as cudnn
import multiprocessing as mp
import logging
import traceback
from tqdm import tqdm
sys.path.insert(0, os.path.abspath(os.path.join(os.path.dirname(__file__), '..')))
from pixielib.pixie import PIXIE
from pixielib.datasets.body_datasets import TestData
from pixielib.utils import util
from pixielib.utils.config import cfg as pixie_cfg
from torch.utils.data import Dataset, DataLoader
logging.basicConfig(filename='pixie_error.log', level=logging.ERROR, format='%(asctime)s %(levelname)-8s %(message)s',
datefmt='%Y-%m-%d %H:%M:%S')
def process_subdir(pixie, subdir, frames_crop_dir, output_dir, device):
try:
torch.cuda.set_device(device)
# visualizer = Visualizer(render_size=args.render_size, config = pixie_cfg, device=device, rasterizer_type=args.rasterizer_type)
sub_dir_path = os.path.join(frames_crop_dir, subdir)
video_folders = [os.path.join(sub_dir_path, f) for f in os.listdir(sub_dir_path) if
os.path.isdir(os.path.join(sub_dir_path, f))]
output_subdir = os.path.join(output_dir, "train", "encode_pixie_id", subdir)
# Check if the output subdirectory exists
if not os.path.exists(output_subdir):
logging.info(f"Start processing subdirectory {subdir}")
print(f"Start processing subdirectory {subdir}")
for video_folder in video_folders:
testdata = TestData(video_folder, iscrop=False, body_detector='rcnn', device=device)
# pdb.set_trace()
# Run PIXIE
for i, frames_batch in enumerate(tqdm(testdata, dynamic_ncols=True)):
util.move_dict_to_device(frames_batch, device)
# pdb.set_trace()
frames_batch['image'] = frames_batch['image'].unsqueeze(0)
frames_batch['image_hd'] = frames_batch['image_hd'].unsqueeze(0)
name = frames_batch['name']
data = {
'body': frames_batch
}
param_dict = pixie.encode(data)
codedict = param_dict['body']
video_name = os.path.basename(video_folder[:-1])
os.makedirs(os.path.join(output_subdir, video_name), exist_ok=True)
util.save_pkl(
os.path.join(output_subdir, video_name, f"{name}_param.pkl"),
codedict)
# Deleting tensors and freeing up GPU memory
del frames_batch, data, param_dict, codedict
torch.cuda.empty_cache()
logging.info(f"Finished processing subdirectory {subdir}")
print(f"Finished processing subdirectory {subdir}")
else:
logging.info(f"Subdirectory {subdir} already exists in the output directory {output_dir}")
print(f"Subdirectory {subdir} already exists in the output directory {output_dir}")
for video_folder in video_folders:
video_name = os.path.basename(video_folder[:-1])
video_dir = os.path.join(output_subdir,video_name)
if not os.path.exists(video_dir):
print(f"Video directory {video_dir} doesn't exist in the output sub-directory {subdir}")
testdata = TestData(video_folder, iscrop=False, body_detector='rcnn', device=device)
# pdb.set_trace()
# Run PIXIE
for i, frames_batch in enumerate(tqdm(testdata, dynamic_ncols=True)):
util.move_dict_to_device(frames_batch, device)
# pdb.set_trace()
frames_batch['image'] = frames_batch['image'].unsqueeze(0)
frames_batch['image_hd'] = frames_batch['image_hd'].unsqueeze(0)
name = frames_batch['name']
data = {
'body': frames_batch
}
param_dict = pixie.encode(data)
codedict = param_dict['body']
video_name = os.path.basename(video_folder[:-1])
os.makedirs(os.path.join(output_subdir, video_name), exist_ok=True)
util.save_pkl(
os.path.join(output_subdir, video_name, f"{name}_param.pkl"),
codedict)
# Deleting tensors and freeing up GPU memory
del frames_batch, data, param_dict, codedict
torch.cuda.empty_cache()
else:
if len(os.listdir(video_dir)) != len(os.listdir(video_folder)):
print(f"adding more files in {video_dir}")
testdata = TestData(video_folder, iscrop=False, body_detector='rcnn', device=device)
# pdb.set_trace()
# Run PIXIE
for i, frames_batch in enumerate(tqdm(testdata, dynamic_ncols=True)):
util.move_dict_to_device(frames_batch, device)
# pdb.set_trace()
frames_batch['image'] = frames_batch['image'].unsqueeze(0)
frames_batch['image_hd'] = frames_batch['image_hd'].unsqueeze(0)
name = frames_batch['name']
data = {
'body': frames_batch
}
param_dict = pixie.encode(data)
codedict = param_dict['body']
util.save_pkl(
os.path.join(video_dir, f"{name}_param.pkl"),
codedict)
# Deleting tensors and freeing up GPU memory
del frames_batch, data, param_dict, codedict
torch.cuda.empty_cache()
logging.info(f"Finished processing subdirectory {subdir}")
print(f"Finished processing subdirectory {subdir}")
except Exception as e:
logging.exception(f"An error occurred while processing subdirectory {subdir}: {e}")
print(f"An error occurred while processing subdirectory {subdir}: {e}")
logging.error(traceback.format_exc()) # write the traceback to the log file
traceback.print_exc(file=sys.stdout) # print the traceback to the console
def process_batch(batch, frames_crop_dir, output_dir, devices, num_gpus):
try:
logging.info(f"Start processing batch {batch}")
print(f"Start processing batch {batch}")
# Map subdirectories to devices
subdir_to_device = {subdir: devices[i % len(devices)] for i, subdir in enumerate(batch)}
# Create PIXIE instance for each GPU
pixies = [PIXIE(config=pixie_cfg, device=device) for device in devices]
# Map the subdirectories to the corresponding PIXIE instance
subdir_to_pixie = {subdir: pixies[i % len(pixies)] for i, subdir in enumerate(batch)}
with mp.Pool(processes=num_gpus*4) as pool:
pool.starmap(process_subdir,
[(subdir_to_pixie[subdir], subdir, frames_crop_dir, output_dir,
subdir_to_device[subdir]) for
subdir in
batch])
# Delete the PIXIE instances
for pixie_instance in pixies:
del pixie_instance
torch.cuda.empty_cache()
logging.info(f"Finished processing batch {batch}")
print(f"Finished processing batch {batch}")
except Exception as e:
logging.exception(f"An error occurred while processing batch {batch}: {e}")
print(f"An error occurred while processing batch {batch}: {e}")
logging.error(traceback.format_exc()) # write the traceback to the log file
traceback.print_exc(file=sys.stdout) # print the traceback to the console
class MyDataset(Dataset):
def __init__(self, frames_crop_dir):
super().__init__()
self.video_folders = []
for subdir in os.listdir(frames_crop_dir):
sub_dir_path = os.path.join(frames_crop_dir, subdir)
self.video_folders.extend([os.path.join(sub_dir_path, f) for f in os.listdir(sub_dir_path) if
os.path.isdir(os.path.join(sub_dir_path, f))])
self.data = {}
for video_folder in self.video_folders:
subdir = os.path.basename(os.path.dirname(video_folder))
if subdir not in self.data:
self.data[subdir] = []
testdata = TestData(video_folder, iscrop=True, body_detector='rcnn')
for frames_batch in testdata:
self.data[subdir].append((frames_batch, os.path.basename(video_folder)))
if __name__ == "__main__":
# Set the multiprocessing start method to 'spawn'
mp.set_start_method('spawn', force=True)
if len(sys.argv) != 3:
print("Usage: python demo_fit_body_mult_gpu.py <input_dir> <output_dir> <device>")
sys.exit(1)
input_dir = sys.argv[1]
output_dir = sys.argv[2]
# check env
if not torch.cuda.is_available():
print('CUDA is not available! use CPU instead')
else:
cudnn.benchmark = True
torch.backends.cudnn.deterministic = False
torch.backends.cudnn.enabled = True
num_gpus = torch.cuda.device_count()
devices = [f"cuda:{i}" for i in range(num_gpus)]
print("Number of used GPUS are ",num_gpus)
print(devices)
frames_crop_dir = os.path.join(input_dir, "extracted_features/train/frames_mirror_id")
# my_dataset = MyDataset(frames_crop_dir)
# subdir_data = my_dataset.data['subdir1']
# Read subdirectories
sub_dirs = [d for d in os.listdir(frames_crop_dir) if os.path.isdir(os.path.join(frames_crop_dir, d))]
# Split list of subdirectories into batches
batch_size = 15 # number of subdirectories to process in each batch
num_batches = 1
# Divide the subdirs into batches
subdir_batches = [sub_dirs[i:i + batch_size] for i in range(0, len(sub_dirs), batch_size)]
print(f"Number of subdirectories {len(sub_dirs)}, processed in {num_batches} batches, with batch size {batch_size}")
# Create a pool of processes and map the batches to the processes
for i, batch in enumerate(subdir_batches):
print(f"Processing batch {i + 1}/{num_batches}")
process_batch(batch, frames_crop_dir, output_dir, devices, num_gpus)
logging.info("All batches are processed")- Extracting Audio Features: We extracted audio features using Mel-spectrograms via librosa, with parameters such as a 16 kHz sample rate, a 25 ms window length, and a 10 ms hop length. The features were resized to match the video frame count, organized into a 3D array, and saved as .npy files for each audio file.
Extracting audio features code122 lines
import os
import sys
import argparse
import pdb
from tqdm import tqdm
import multiprocessing
import logging
import traceback
import numpy as np
import cv2
import glob
import librosa
import numpy as np
from PIL import Image
logging.basicConfig(filename='audio_final_error.log', level=logging.ERROR,
format='%(asctime)s %(levelname)-8s %(message)s',
datefmt='%Y-%m-%d %H:%M:%S')
def load_mfcc(audio_path, num_frames_video):
waveform, sample_rate = librosa.load('{}'.format(audio_path), sr=16000)
win_len = int(0.025 * sample_rate)
hop_len = int(0.010 * sample_rate)
fft_len = 2 ** int(np.ceil(np.log(win_len) / np.log(2.0)))
S_dB = librosa.feature.melspectrogram(y=waveform, sr=sample_rate, hop_length=hop_len)
# do some resizing to match frame rate
im = Image.fromarray(S_dB)
T = 64
_, feature_dim = im.size
scale_four = T * 4
# Reshape im to be (N,scale_four,128)
N = num_frames_video // 64
# Convert the image to a numpy array
im = np.transpose(np.asarray(im))
S_dB = im[:N * scale_four, :]
S_dB = S_dB.reshape(N, scale_four, 128)
# print(S_dB.shape)
return S_dB
def process_subdir(subdir, video_sync_dir, frames_crop_dir, output_dir):
try:
sub_dir_path = os.path.join(video_sync_dir, subdir)
output_subdir = os.path.join(output_dir, "test", "audio_features_session", subdir)
# Check if the output subdirectory exists
if not os.path.exists(output_subdir):
os.makedirs(output_subdir, exist_ok=True)
# use glob to find all the .mp3 files in the subdir
audio_files = glob.glob(sub_dir_path + '/*.mp3')
# pdb.set_trace()
# loop over the audio files and process each one
for audio_file in tqdm(audio_files):
# extract the file name without extension from the audio file path
audio_name = os.path.splitext(os.path.basename(audio_file))[0]
# construct the path to the corresponding video file
video_folder = os.path.join(os.path.join(frames_crop_dir, subdir), audio_name)
num_frames_video = len(os.listdir(video_folder))
# print(audio_file, num_frames_video)
# pdb.set_trace()
# load_mfcc function on the audio file
mfcc = load_mfcc(audio_file, num_frames_video)
audio_name = audio_name.replace("_all_body_pixie", "_audio_mfcc")
np.save(os.path.join(output_subdir, audio_name + '.npy'), mfcc)
logging.info(f"Finished processing subdirectory {subdir}")
print(f"Finished processing subdirectory {subdir}")
except Exception as e:
logging.exception(f"An error occurred while processing subdirectory {subdir}: {e}")
print(f"An error occurred while processing subdirectory {subdir}: {e}")
logging.error(traceback.format_exc()) # write the traceback to the log file
traceback.print_exc(file=sys.stdout) # print the traceback to the console
def process_batch(batch, video_sync_dir, frames_crop_dir, output_dir):
try:
logging.info(f"Start processing batch {batch}")
print(f"Start processing batch {batch}")
with multiprocessing.Pool(processes=multiprocessing.cpu_count() * 6) as pool:
pool.starmap(process_subdir, [(subdir, video_sync_dir, frames_crop_dir, output_dir) for subdir in batch])
logging.info(f"Finished processing batch {batch}")
print(f"Finished processing batch {batch}")
except Exception as e:
logging.exception(f"An error occurred while processing batch {batch}: {e}")
print(f"An error occurred while processing batch {batch}: {e}")
logging.error(traceback.format_exc()) # write the traceback to the log file
traceback.print_exc(file=sys.stdout) # print the traceback to the console
if __name__ == "__main__":
if len(sys.argv) != 3:
print("Usage: python saving_audio_final.py <input_dir> <output_dir>")
sys.exit(1)
input_dir = sys.argv[1]
output_dir = sys.argv[2]
video_sync_dir = os.path.join(input_dir, "extracted_features/test/video_sync")
frames_crop_dir = os.path.join(input_dir, "extracted_features/test/frames_crop")
# Read subdirectories
subdirs = [d for d in os.listdir(video_sync_dir) if os.path.isdir(os.path.join(video_sync_dir, d))]
# Set the number of batches and number of processes
batch_size = 11 # number of subdirectories to process in each batch
# num_processes_per_batch = 2 # number of processes to use for each batch
num_batches = len(subdirs) // batch_size + 1
# Divide the subdirs into batches
batches = [subdirs[i:i + batch_size] for i in range(0, len(subdirs), batch_size)]
print(f"Number of subdirectories {len(subdirs)}, processed in {num_batches} batches, with batch size {batch_size}")
# Create a pool of processes and map the batches to the processes
for i, batch in enumerate(batches):
print(f"Processing batch {i + 1} of {len(batches)}")
process_batch(batch, video_sync_dir, frames_crop_dir, output_dir)
logging.info("All batches are processed")
print("All batches are processed")- Postprocessing (motion features): We applied a dual filtering strategy to smooth the motion features and reduce jittering. First, a mean average filter with a window size of 7 frame was used to smooth transitions between frames. Then, a median filter with a 3-frame window was applied at detected scene changes to minimize abrupt jumps while preserving motion variability.
Postprocessing features code162 lines
import os, sys
import numpy as np
import pickle
import torch
from multiprocessing import Pool
from tqdm import tqdm
import pdb
import cv2
def load_pickle_file(filepath):
with open(filepath, 'rb') as f:
return pickle.load(f)
def save_to_target_directory(updated_content, source_path, source_directory, target_directory):
target_path = source_path.replace(source_directory, target_directory)
target_dir = os.path.dirname(target_path)
if not os.path.exists(target_dir):
os.makedirs(target_dir)
with open(target_path, 'wb') as f:
pickle.dump(updated_content, f)
def calculate_optical_flow(prev_frame, current_frame):
try:
prev_gray = cv2.cvtColor(prev_frame, cv2.COLOR_BGR2GRAY)
gray = cv2.cvtColor(current_frame, cv2.COLOR_BGR2GRAY)
feature_params = dict(maxCorners=100, qualityLevel=0.3, minDistance=7, blockSize=7)
lk_params = dict(winSize=(15, 15), maxLevel=2, criteria=(cv2.TERM_CRITERIA_EPS | cv2.TERM_CRITERIA_COUNT, 10, 0.03))
p0 = cv2.goodFeaturesToTrack(prev_gray, mask=None, **feature_params)
if p0 is not None:
p1, st, err = cv2.calcOpticalFlowPyrLK(prev_gray, gray, p0, None, **lk_params)
good_new = p1[st == 1]
good_old = p0[st == 1]
motion = np.sqrt((good_new[:,0] - good_old[:,0])**2 + (good_new[:,1] - good_old[:,1])**2)
else:
motion = np.array([0])
except Exception as e:
print(f"Error in calculate_optical_flow: {e}")
motion = np.array([0])
return motion
def detect_scene_changes(frame_paths, threshold=6.0):
\"\"\"Detects scene changes in a list of frames using optical flow.\"\"\"
prev_frame = cv2.imread(frame_paths[0])
scene_changes = []
for i, frame_path in enumerate(frame_paths[1:], 1):
current_frame = cv2.imread(frame_path)
motion = calculate_optical_flow(prev_frame, current_frame)
# print(f"frame {i}: {np.mean(motion)}")
# Check if the average motion is above the threshold
if np.mean(motion) > threshold:
scene_changes.append(i) # Store the index of the frame
prev_frame = current_frame
return scene_changes
def smooth_predictions(predictions, window=7):
smoothed = []
for i in range(len(predictions)):
if window <= i < len(predictions) - window: # for middle frames with sufficient surrounding frames
smoothed_codedict = {}
# Identify the first parameter (key)
first_param = next(iter(predictions[i]))
for param in predictions[i].keys():
if param == first_param:
# Copy the first parameter as is, without smoothing
smoothed_codedict[param] = predictions[i][param]
else:
# Smooth other parameters
sum_frames = sum(predictions[j][param] for j in range(i - window, i + window + 1))
smoothed_codedict[param] = sum_frames / (2 * window + 1)
smoothed.append(smoothed_codedict)
else: # for first and last frames where the window is not full
smoothed.append(predictions[i])
return smoothed
def apply_median_filter_at_jumps(predictions, scene_changes, window=3):
if not scene_changes:
return predictions
smoothed_predictions = predictions.copy()
half_window = window // 2
for i in scene_changes:
for param in predictions[0].keys():
start_index = max(i - half_window, 0)
end_index = min(i + half_window + 1, len(predictions))
window_values = [predictions[j][param] for j in range(start_index, end_index)]
if window_values:
array_values = np.array(window_values)
median_value = np.median(array_values, axis=0)
smoothed_predictions[i][param] = median_value
return smoothed_predictions
def process_subdirectory(subdir, source_directory, frames_directory, target_directory):
try:
sorted_filenames = sorted([f for f in os.listdir(subdir) if f.endswith("_param.pkl")])
if not sorted_filenames:
print(f"No files found in: {subdir}")
return
frames_features = [load_pickle_file(os.path.join(subdir, filename)) for filename in sorted_filenames]
frames_path = subdir.replace(source_directory, frames_directory) + 'e'
original_frames_list = sorted([os.path.join(frames_path, f) for f in os.listdir(frames_path) if f.endswith('.png') or f.endswith('.jpg')])
# Detect video cuts that corresponds to abrupt jumps
print("detecting video cuts.....")
scene_changes = detect_scene_changes(original_frames_list)
# Transfer parameters from the first frame to all other frames
first_frame_parameters = frames_features[0]
parameters_to_override = ['shape', 'tex', 'body_cam', 'light', 'global_pose']
for i in range(1, len(frames_features)):
for param in parameters_to_override:
frames_features[i][param] = first_frame_parameters[param]
print("applying avearge mean filter.....")
smoothed_features = smooth_predictions(frames_features)
# Apply median filter at scene change indices
print("applying median filter....")
smoothed_features = apply_median_filter_at_jumps(smoothed_features, scene_changes)
for filename, updated_content in zip(tqdm(sorted_filenames), smoothed_features):
source_path = os.path.join(subdir, filename)
save_to_target_directory(updated_content, source_path, source_directory, target_directory)
print(f"Finished processing subdirectory {subdir}")
except Exception as e:
print(f"Error in process_subdirectory for {subdir}: {e}")
def worker_initializer():
print(f"Initialized worker {os.getpid()}")
def main():
source_directory = "/home/UDIVAv0.5/extracted_features/test/encode_pixie_id"
frames_directory = "/home/UDIVAv0.5/extracted_features/test/frames_mirror_id"
target_directory = "/home/UDIVAv0.5/extracted_features/test/smoothed_encode_pixie_id"
top_level_dirs = [os.path.join(source_directory, d) for d in os.listdir(source_directory) if os.path.isdir(os.path.join(source_directory, d))]
# import pdb; pdb.set_trace()
# top_level_dirs = ['/home/UDIVAv0.5/extracted_features/train/encode_pixie_id/20']
subdirs = ["p0_speak_all_body_pixi", "p0_list_all_body_pixi", "p1_list_all_body_pixi", "p1_speak_all_body_pixi"]
all_subdirs = []
for top_dir in top_level_dirs:
for subdir in subdirs:
path = os.path.join(top_dir, subdir)
if os.path.exists(path):
all_subdirs.append(path)
with Pool(processes=min(44, os.cpu_count())) as pool:
pool.starmap(process_subdirectory, [(subdir, source_directory, frames_directory, target_directory) for subdir in all_subdirs])
print("...Finished processing all directories...")
if __name__ == "__main__":
main()- Saving Final Features: Finally, the smoothed motion parameters were resized and saved as updated 3D arrays in the target train directory.
Saving final features code150 lines
import os
import sys
import argparse
import pdb
from tqdm import tqdm
import multiprocessing
import logging
import traceback
import numpy as np
import torch.backends.cudnn as cudnn
import torch
import cv2
import pickle
import glob
import shutil
logging.basicConfig(filename='motion_final_error.log', level=logging.ERROR, format='%(asctime)s %(levelname)-8s %(message)s',
datefmt='%Y-%m-%d %H:%M:%S')
def load_data(data_file):
# Loading the dictionary
with open(data_file, 'rb') as f:
features = pickle.load(f)
# Convert the values to torch tensors
for key in features.keys():
features[key] = torch.tensor(features[key])
# Print the shape of the features
# for key, value in features.items():
# print(f"{key} shape: {value.shape}")
return features
def prepare_param(features):
# concatenating frame features and return a tensor with smpl-x parameters.
features['body_pose'] = torch.cat((features['partbody_pose'], features['neck_pose'], features['head_pose'],
features['left_wrist_pose'], features['right_wrist_pose']), dim=1)
# note:shape parameters are not assigned to the tensor right now,since it is not use during valing the mode
# parameters = torch.cat((features['exp'], features['global_pose'], features['body_pose'], features['jaw_pose'],
# features['left_hand_pose'], features['right_hand_pose']), dim=1)
parameters = torch.cat((features['exp'], features['body_pose'], features['jaw_pose'],
features['left_hand_pose'], features['right_hand_pose']), dim=1)
return parameters
def process_subdir(subdir, encode_pixie_dir, output_dir):
try:
sub_dir_path = os.path.join(encode_pixie_dir, subdir)
pixie_video_folders = [os.path.join(sub_dir_path, f) for f in os.listdir(sub_dir_path) if
os.path.isdir(os.path.join(sub_dir_path, f))]
audio_subdir = os.path.join(output_dir, "train", "final_features_id", subdir)
output_subdir = os.path.join(output_dir, "train", "smoothed_final_features_id", subdir)
# Check if the output subdirectory exists
if not os.path.exists(output_subdir):
os.makedirs(output_subdir, exist_ok=True)
logging.info(f"Start processing subdirectory {subdir}")
print(f"Start processing subdirectory {subdir}")
# Copying corresponding audio files to output subdirectory
p0_speak_file = os.path.join(audio_subdir,"p0_speak_audio_mfcc.npy")
p1_speak_file = os.path.join(audio_subdir,"p1_speak_audio_mfcc.npy")
shutil.copy(p0_speak_file, output_subdir)
shutil.copy(p1_speak_file, output_subdir)
# Saving final motion features to output subdirectory
for pixie_video in pixie_video_folders:
pixie_files = os.path.join(pixie_video, '*_param.pkl')
pixie_files = sorted(filter(os.path.isfile, glob.glob(pixie_files)))
total_frames = len(pixie_files)
# N is the number of frames sequence saved in npy file each sequence is 64 frames
N = total_frames // 64
all_params = []
saveAll = True
for feature_file in tqdm(pixie_files):
frame_features = load_data(feature_file)
if saveAll:
all_params.append(prepare_param(frame_features))
video_name = os.path.basename(pixie_video[:-1])
# save frame features for all body parts
if saveAll:
all_params = [p.cpu().numpy() for p in all_params]
all_params = np.asarray(all_params)
# N = all_params.shape[0] // 64
all_params = all_params[:N * 64, :]
# all_params = all_params.reshape(N, 64, 365)
# wihout including global pose paramaters
all_params = all_params.reshape(N, 64, 359)
np.save(os.path.join(output_subdir, video_name + '.npy'), all_params)
logging.info(f"Finished processing subdirectory {subdir}")
print(f"Finished processing subdirectory {subdir}")
else:
logging.info(f"Subdirectory {subdir} already exists in the output directory {output_dir}")
print(f"Subdirectory {subdir} already exists in the output directory {output_dir}")
except Exception as e:
logging.exception(f"An error occurred while processing subdirectory {subdir}: {e}")
print(f"An error occurred while processing subdirectory {subdir}: {e}")
logging.error(traceback.format_exc()) # write the traceback to the log file
traceback.print_exc(file=sys.stdout) # print the traceback to the console
def process_batch(batch, encode_pixie_dir, output_dir):
try:
logging.info(f"Start processing batch {batch}")
print(f"Start processing batch {batch}")
with multiprocessing.Pool(processes=multiprocessing.cpu_count()) as pool:
pool.starmap(process_subdir, [(subdir, encode_pixie_dir, output_dir) for subdir in batch])
logging.info(f"Finished processing batch {batch}")
print(f"Finished processing batch {batch}")
except Exception as e:
logging.exception(f"An error occurred while processing batch {batch}: {e}")
print(f"An error occurred while processing batch {batch}: {e}")
logging.error(traceback.format_exc()) # write the traceback to the log file
traceback.print_exc(file=sys.stdout) # print the traceback to the console
if __name__ == "__main__":
if len(sys.argv) != 3:
print("Usage: python saving_motion_features.py <input_dir> <output_dir>")
sys.exit(1)
input_dir = sys.argv[1]
output_dir = sys.argv[2]
encode_pixie_dir = os.path.join(input_dir, "extracted_features/train/smoothed_encode_pixie_id")
# Read subdirectories
subdirs = [d for d in os.listdir(encode_pixie_dir) if os.path.isdir(os.path.join(encode_pixie_dir, d))]
# Set the number of batches and number of processes
batch_size = 15 # number of subdirectories to process in each batch
# num_processes_per_batch = 2 # number of processes to use for each batch
num_batches = len(subdirs) // batch_size + 1
# Divide the subdirs into batches
batches = [subdirs[i:i + batch_size] for i in range(0, len(subdirs), batch_size)]
#batches = [['020150', '020149', '020025', '018020', '020090']]
print(f"Number of subdirectories {len(subdirs)}, processed in {num_batches} batches, with batch size {batch_size}")
# Create a pool of processes and map the batches to the processes
for i, batch in enumerate(batches):
print(f"Processing batch {i + 1} of {len(batches)}")
process_batch(batch, encode_pixie_dir, output_dir)
logging.info("All batches are processed")Model training
After preprocessing the data, we trained our model using PyTorch. The main tasks included:
- Model Definition: Defining the model layers architecture and different modules, including:
VQ-VAE (Vector Quantized Variational AutoEncoder): This module quantizes listener motion features into discrete codes by mapping the input to the nearest entries in the codebook. By using these learned discrete latent codes, we ensure that the motion stays within the manifold of realistic movements, preventing any drift.
VQ-VAE module code263 lines
VQModelTransformer Class
In the VQModelTransformer class, we define the architecture for quantizing motion features and reconstructing them using learned codebook entries. The model consists of the following key components:
-
Encoder: The encoder, an instance of the
TransformerEncoderclass, processes the input motion features. It first downsamples the input sequence and extracts relevant features. Positional information is then embedded through Position and Linear Embeddings. A transformer with self-attention mechanisms captures the temporal dependencies in the motion data, enabling the model to effectively learn complex motion patterns. -
VectorQuantizer: This module sits at the bottleneck of the VQ-VAE model. It quantizes the encoder's output by mapping it to the nearest vectors in a learned codebook. This step converts continuous motion features into discrete codes, preserving the key information while reducing dimensionality.
-
Decoder: The
TransformerDecoderreconstructs the quantized sequence back into the original motion sequence. This component reverses the process of the encoder, ensuring that the decoded output closely resembles the original input motion.
setup_vq_transformer Function
The setup_vq_transformer function initializes and sets up the VQ-VAE model for both training and testing. Here’s a breakdown:
-
Model Creation: We create an instance of the
VQModelTransformerand move it to the GPU for efficient computation. The model is parallelized to take advantage of multiple GPUs if available. -
Optimizer Setup: A scheduled optimizer (
ScheduledOptim) is configured with an AdamW optimizer. This optimizes the learning rate dynamically, starting with a warm-up phase, allowing the model to train effectively. -
Checkpoint Loading: If a checkpoint is provided, the model and optimizer states are loaded from the saved file, resuming training from the last saved epoch. The learning rate may be adjusted if training resumes after a significant number of epochs.
-
Starting from Scratch: If no checkpoint is provided, the function starts training from scratch.
The function returns the model, optimizer, and the starting epoch.
calc_vq_loss Function
The calc_vq_loss function defines the loss used for training the VQ-VAE model. It combines two key components:
-
Reconstruction Loss: This measures the difference between the predicted output and the ground truth motion features, ensuring that the model reconstructs realistic motion.
-
Quantization Loss: This loss is computed based on how effectively the input motion features are quantized into discrete codes. It encourages the model to generate meaningful and compact code representations that accurately capture the underlying motion.
The total loss is a combination of the reconstruction loss and the weighted quantization loss, guiding the model to learn efficient and meaningful quantization of motion data.
import functools
import json
import math
import numpy as np
import torch
import torch.nn as nn
import torch.nn.functional as F
import sys
sys.path.append("../")
from vqgan.vqmodules.quantizer import VectorQuantizer
from modules.base_models import Transformer, PositionEmbedding, LinearEmbedding, AudioEmbedding
from utils.base_model_util import get_activation
from utils.optim import ScheduledOptim
# Function to create and set up the VQ-VAE model for training or testing
def setup_vq_transformer(args, config, load_path=None, test=False, version=None):
# Create VQ-VAE model and optimizer
generator = VQModelTransformer(config, version).cuda()
learning_rate = config['learning_rate']
print('Starting learning rate:', learning_rate)
g_optimizer = ScheduledOptim(
torch.optim.AdamW(generator.parameters(), betas=(0.9, 0.98), eps=1e-09),
learning_rate,
config['transformer_config']['hidden_size'],
config['warmup_steps']
)
print("Let's use", torch.cuda.device_count(), "GPUs!")
generator = nn.DataParallel(generator)
# Load model from previous checkpoint to resume training
start_epoch = 0
if load_path is not None:
loaded_state = torch.load(load_path, map_location=lambda storage, loc: storage)
generator.load_state_dict(loaded_state['state_dict'], strict=True)
g_optimizer._optimizer.load_state_dict(loaded_state['optimizer']['optimizer'])
g_optimizer.set_n_steps(loaded_state['optimizer']['n_steps'])
start_epoch = loaded_state['epoch']
print("Start epoch:", start_epoch)
if start_epoch > 500:
print('>> Changing learning rate to 0.00001')
g_optimizer.set_init_lr(0.00001)
print('Loading checkpoint from...', load_path)
else:
print('Starting from scratch...')
return generator, g_optimizer, start_epoch
# Function to compute the various components of the VQ loss
def calc_vq_loss(pred, target, quant_loss, quant_loss_weight=1.0, alpha=1.0):
# Expression Loss
exp_loss = nn.L1Loss()(pred[:, :, :50], target[:, :, :50])
# Body Poses Losses
partbody_pose_loss = alpha * nn.L1Loss()(pred[:, :, 50:152], target[:, :, 50:152])
neck_pose_loss = alpha * nn.L1Loss()(pred[:, :, 152:158], target[:, :, 152:158])
head_pose_loss = alpha * nn.L1Loss()(pred[:, :, 158:164], target[:, :, 158:164])
left_wrist_pose_loss = alpha * nn.L1Loss()(pred[:, :, 164:170], target[:, :, 164:170])
right_wrist_pose_loss = alpha * nn.L1Loss()(pred[:, :, 170:176], target[:, :, 170:176])
jaw_pose_loss = alpha * nn.L1Loss()(pred[:, :, 176:179], target[:, :, 176:179])
left_hand_pose_loss = alpha * nn.L1Loss()(pred[:, :, 179:269], target[:, :, 179:269])
right_hand_pose_loss = alpha * nn.L1Loss()(pred[:, :, 269:359], target[:, :, 269:359])
# Combining all losses
combined_loss = (exp_loss + partbody_pose_loss + neck_pose_loss + head_pose_loss +
left_wrist_pose_loss + right_wrist_pose_loss + jaw_pose_loss +
left_hand_pose_loss + right_hand_pose_loss)
# Total Loss = VQ reconstruction + weighted pre-computed quantization loss
total_loss = quant_loss.mean() * quant_loss_weight + combined_loss
return total_loss
# Transformer model for listener VQ-VAE
class VQModelTransformer(nn.Module):
def __init__(self, config, version):
super().__init__()
self.encoder = TransformerEncoder(config)
self.decoder = TransformerDecoder(config, config['transformer_config']['in_dim'])
self.quantize = VectorQuantizer(config['VQuantizer']['n_embed'],
config['VQuantizer']['zquant_dim'],
beta=0.30)
def encode(self, x, x_a=None):
h = self.encoder(x) # x --> z'
quant, emb_loss, info = self.quantize(h) # finds nearest quantization
return quant, emb_loss, info
def decode(self, quant):
dec = self.decoder(quant) # z' --> x
return dec
def forward(self, x, x_a=None):
quant, emb_loss, info = self.encode(x)
dec = self.decode(quant)
perplexity = info[0]
return dec, emb_loss, perplexity
def sample_step(self, x, x_a=None):
quant_z, _, info = self.encode(x, x_a)
x_sample_det = self.decode(quant_z)
btc = quant_z.shape[0], quant_z.shape[2], quant_z.shape[1]
indices = info[2]
x_sample_check = self.decode_to_img(indices, btc)
return x_sample_det, x_sample_check
def get_quant(self, x, x_a=None):
quant_z, _, info = self.encode(x, x_a)
indices = info[2]
return quant_z, indices
def get_distances(self, x):
h = self.encoder(x) # x --> z'
d = self.quantize.get_distance(h)
return d
def get_quant_from_d(self, d, btc):
min_encoding_indices = torch.argmin(d, dim=1).unsqueeze(1)
x = self.decode_to_img(min_encoding_indices, btc)
return x
@torch.no_grad()
def decode_to_img(self, index, zshape):
index = index.long()
quant_z = self.quantize.get_codebook_entry(index.reshape(-1), shape=None)
quant_z = torch.reshape(quant_z, zshape).permute(0, 2, 1)
x = self.decode(quant_z)
return x
@torch.no_grad()
def decode_logit(self, logits, zshape):
if logits.dim() == 3:
probs = F.softmax(logits, dim=-1)
_, ix = torch.topk(probs, k=1, dim=-1)
else:
ix = logits
ix = torch.reshape(ix, (-1, 1))
x = self.decode_to_img(ix, zshape)
return x
# Function that samples the distribution of logits or returns the top indices
def get_logit(self, logits, sample=False, filter_value=-float('Inf'),
temperature=0.7, top_p=0.9, sample_idx=None):
if sample_idx is None:
if sample:
filtered_logits = self.nucleus_sampling(logits, filter_value, temperature, top_p)
shape = filtered_logits.shape
probs = F.softmax(filtered_logits, dim=-1)
sampled_ix = torch.multinomial(probs.view(-1, shape[-1]), 1).view(shape[:-1])
return sampled_ix, probs
else:
probs = F.softmax(logits, dim=-1)
top_ix = torch.argmax(probs, dim=-1)
return top_ix, probs
else:
pass
# Apply nucleus (top-p) sampling to logits
def nucleus_sampling(self, logits, filter_value, temperature, top_p):
logits = logits / temperature
sorted_logits, sorted_indices = torch.sort(logits, descending=True, dim=-1)
cumulative_probs = torch.cumsum(F.softmax(sorted_logits, dim=-1), dim=-1)
sorted_indices_to_remove = cumulative_probs > top_p
sorted_indices_to_remove[..., 1:] = sorted_indices_to_remove[..., :-1].clone()
sorted_indices_to_remove[..., 0] = 0
indices_to_remove = sorted_indices[sorted_indices_to_remove]
logits[indices_to_remove] = filter_value
return logits
# Encoder class for VQ-VAE with Transformer backbone
class TransformerEncoder(nn.Module):
def __init__(self, config):
super().__init__()
self.config = config
size = self.config['transformer_config']['in_dim']
dim = self.config['transformer_config']['hidden_size']
layers = [nn.Sequential(
nn.Conv1d(size, dim, 5, stride=2, padding=2, padding_mode='replicate'),
nn.LeakyReLU(0.2, True),
nn.BatchNorm1d(dim))]
for _ in range(1, config['transformer_config']['quant_factor']):
layers += [nn.Sequential(
nn.Conv1d(dim, dim, 5, stride=1, padding=2, padding_mode='replicate'),
nn.LeakyReLU(0.2, True),
nn.BatchNorm1d(dim),
nn.MaxPool1d(2)
)]
self.squasher = nn.Sequential(*layers)
self.encoder_transformer = Transformer(
in_size=self.config['transformer_config']['hidden_size'],
hidden_size=self.config['transformer_config']['hidden_size'],
num_hidden_layers=self.config['transformer_config']['num_hidden_layers'],
num_attention_heads=self.config['transformer_config']['num_attention_heads'],
intermediate_size=self.config['transformer_config']['intermediate_size']
)
self.encoder_pos_embedding = PositionEmbedding(
self.config["transformer_config"]["quant_sequence_length"],
self.config['transformer_config']['hidden_size']
)
self.encoder_linear_embedding = LinearEmbedding(
self.config['transformer_config']['hidden_size'],
self.config['transformer_config']['hidden_size']
)
def forward(self, inputs):
dummy_mask = {'max_mask': None, 'mask_index': -1, 'mask': None}
inputs = self.squasher(inputs.permute(0, 2, 1)).permute(0, 2, 1)
encoder_features = self.encoder_linear_embedding(inputs)
encoder_features = self.encoder_pos_embedding(encoder_features)
encoder_features = self.encoder_transformer((encoder_features, dummy_mask))
return encoder_features
# Decoder class for VQ-VAE with Transformer backbone
class TransformerDecoder(nn.Module):
def __init__(self, config, out_dim, is_audio=False):
super().__init__()
self.config = config
size = self.config['transformer_config']['hidden_size']
dim = self.config['transformer_config']['hidden_size']
self.expander = nn.ModuleList()
self.expander.append(nn.Sequential(
nn.ConvTranspose1d(size, dim, 5, stride=2, padding=2, output_padding=1, padding_mode='replicate'),
nn.LeakyReLU(0.2, True),
nn.BatchNorm1d(dim)))
num_layers = config['transformer_config']['quant_factor'] + 2 if is_audio else config['transformer_config']['quant_factor']
seq_len = config["transformer_config"]["sequence_length"] * 4 if is_audio else config["transformer_config"]["sequence_length"]
for _ in range(1, num_layers):
self.expander.append(nn.Sequential(
nn.Conv1d(dim, dim, 5, stride=1, padding=2, padding_mode='replicate'),
nn.LeakyReLU(0.2, True),
nn.BatchNorm1d(dim),
))
self.decoder_transformer = Transformer(
in_size=self.config['transformer_config']['hidden_size'],
hidden_size=self.config['transformer_config']['hidden_size'],
num_hidden_layers=self.config['transformer_config']['num_hidden_layers'],
num_attention_heads=self.config['transformer_config']['num_attention_heads'],
intermediate_size=self.config['transformer_config']['intermediate_size']
)
self.decoder_pos_embedding = PositionEmbedding(
seq_len,
self.config['transformer_config']['hidden_size']
)
self.decoder_linear_embedding = LinearEmbedding(
self.config['transformer_config']['hidden_size'],
self.config['transformer_config']['hidden_size']
)
self.cross_smooth_layer = nn.Conv1d(
config['transformer_config']['hidden_size'],
out_dim, 5, padding=2
)
def forward(self, inputs):
dummy_mask = {'max_mask': None, 'mask_index': -1, 'mask': None}
for i, module in enumerate(self.expander):
inputs = module(inputs.permute(0, 2, 1)).permute(0, 2, 1)
if i > 0:
inputs = inputs.repeat_interleave(2, dim=1)
decoder_features = self.decoder_linear_embedding(inputs)
decoder_features = self.decoder_pos_embedding(decoder_features)
decoder_features = self.decoder_transformer((decoder_features, dummy_mask))
pred_recon = self.cross_smooth_layer(decoder_features.permute(0, 2, 1)).permute(0, 2, 1)
return pred_reconCross-modal Transformer: Aligns the speaker motion and audio inputs into a shared latent space using a cross-attention mechanism
Cross-modal transformer module code31 lines
The Cross-modal Transformer using a cross-attention mechanism to effectively integrate multi-modal inputs. It processes audio inputs as queries and motion data as keys and values. This architecture is implemented using multiple layers, each composed of CrossModalAttention , Residual , Norm, and MLP modules. The CrossModalAttention layer performs cross-attention between modalities, while the MLP layers further refine the fused features. The goal is to capture long-range dependencies between the speaker's motion and audio inputs, aligning them in a shared latent space. The model can switch between cross-modal and self-attention modes depending on the configuration of the 'Transformer' class.
class Transformer(nn.Module):
def __init__(self, in_size=50, hidden_size=768, num_hidden_layers=12,
num_attention_heads=12, intermediate_size=3072,
cross_modal=False, in_dim2=None):
super().__init__()
blocks = []
if cross_modal:
for i in range(num_hidden_layers):
blocks.extend([
Residual(Norm(CrossModalAttention(in_size, hidden_size,
heads=num_attention_heads,
in_dim2=in_dim2), hidden_size)),
Residual(Norm(MLP(hidden_size, hidden_size, intermediate_size), hidden_size))
])
else:
for i in range(num_hidden_layers):
blocks.extend([
Residual(Norm(Attention(in_size, hidden_size,
heads=num_attention_heads), hidden_size)),
Residual(Norm(MLP(hidden_size, hidden_size, intermediate_size), hidden_size))
])
self.net = nn.Sequential(*blocks)
def forward(self, x_data):
if self.cross_modal:
x_data = self.net(x_data)
return x_data['x_b']
else:
x, mask_info = x_data
x, _ = self.net((x, mask_info))
return xPersonality Network: This module conditions listener sequences on personality traits by embedding personality scores, such as extraversion, into a higher-dimensional vector space. By using a Multi-Layer Perceptron (MLP) network, the personality values are transformed into a conditioned embedding.
Personality network module code27 lines
ConditioningMLP Class
The ConditioningMLP class defines a simple MLP architecture for embedding personality scores. The model takes as input a sequence of personality scores and transforms them using the following components:
- Input Layer: Maps the personality score to a higher-dimensional space.
- Hidden Layer: A non-linear transformation using GELU activation to capture complex relationships.
- Output Layer: Produces the final conditioned vector that represents the personality in a higher-dimensional space.
The input sequence is reshaped before passing through the network and is then reshaped back into the original sequence format with the newly transformed embeddings.
import torch.nn as nn
import torch.nn.functional as F
class ConditioningMLP(nn.Module):
def __init__(self, input_size=1, hidden_size=64, output_size=128):
super(ConditioningMLP, self).__init__()
self.input_size = input_size
self.hidden_size = hidden_size
self.output_size = output_size
# Define layers of the MLP
self.fc1 = nn.Linear(self.input_size, self.hidden_size)
self.fc2 = nn.Linear(self.hidden_size, self.output_size)
def forward(self, x):
# x shape: [B, seq_len, 1]
B, seq_len, _ = x.shape
x = x.view(-1, self.input_size) # Flatten input for MLP
# Apply the MLP with GELU activation
x = self.fc1(x)
x = F.gelu(x)
x = self.fc2(x)
# Reshape back to [B, seq_len, output_size]
x = x.view(B, seq_len, -1)
return xPredictor Transformer: Our full attention transformer captures the correlation between the speaker motion and audio sequences and the listener's past motion sequences to autoregressively predict the future listener motion sequence.
Predictor transformer module code38 lines
The Predictor Transformer utilizes two modalities:
- modal_a_sequences represents the listener's motion quantized sequence (first modality), potentially concatenated with personality network embeddings.
- modal_b_sequences represents the second modality, which includes fused outputs from a previous cross-modal transformer handling speaker motion and audio embedding.
The inputs are concatenated and passed through position embeddings and a Transformer model with multiple layers of attention. Additionally, binary masks are applied to regulate the attention mechanism. After the Transformer, the output is normalized using LayerNorm and passed through a final linear output layer to produce the logits representing the predicted listener motion.
class CrossModalLayer(nn.Module):
def __init__(self, config):
super().__init__()
self.config = config
model_config = self.config['transformer']
self.transformer_layer = Transformer(
in_size=model_config['hidden_size'],
hidden_size=model_config['hidden_size'],
num_hidden_layers=model_config['num_hidden_layers'],
num_attention_heads=model_config['num_attention_heads'],
intermediate_size=model_config['intermediate_size'])
output_layer_config = self.config['output_layer']
self.cross_norm_layer = nn.LayerNorm(self.config['in_dim'])
self.cross_output_layer = nn.Linear(
self.config['in_dim'],
output_layer_config['out_dim'],
bias=False)
self.cross_pos_embedding = PositionEmbedding(
self.config["sequence_length"], self.config['in_dim'])
def forward(self, modal_a_sequences, modal_b_sequences, mask_info):
_, _, modal_a_width = get_shape_list(modal_a_sequences)
merged_sequences = modal_a_sequences
if modal_b_sequences is not None:
_, _, modal_b_width = get_shape_list(modal_b_sequences)
if modal_a_width != modal_b_width:
raise ValueError(
"The modal_a hidden size (%d) should be the same with the modal_b"
"hidden size (%d)" % (modal_a_width, modal_b_width))
merged_sequences = torch.cat([merged_sequences, modal_b_sequences], axis=1)
merged_sequences = self.cross_pos_embedding(merged_sequences)
merged_sequences = self.transformer_layer((merged_sequences, mask_info))
merged_sequences = self.cross_norm_layer(merged_sequences)
logits = self.cross_output_layer(merged_sequences)
return logits- Training Loop: Implementing the training loop, including loss computation and backpropagation. Our model training consists of two stages:
Stage 1: Training the VQ-VAE: We start by training the VQ-VAE model, which is responsible for learning the listener codebook entries. The VQ-VAE is optimized using the AdamW optimizer, which is configured with a scheduled learning rate decay. Specifically, we use an initial learning rate of 0.1 and a warm-up phase of 100,000 steps. The batch size for training is set to 32, and we train the model for around 1300 epochs, which took approximately 3 days using 8 GPUs. The training dataset consists of listener sequences of length 32, and the encoder, quantizer, and decoder components of the VQ-VAE are trained jointly to minimize the reconstruction loss as well as the quantization loss.
VQ-VAE training code192 lines
Training the VQ-VAE
The VQ-VAE model is trained using the following code. The training loop iterates over batches of listener motion sequences, computing the reconstruction loss and quantization loss. The optimizer performs backpropagation to update the model's weights.
-
Experiment Logging and Management: For each training session, we create a unique experiment directory with a timestamp, saving metadata, model checkpoints, and training logs. Configuration files are preserved for reproducibility, and training progress is logged with TensorBoard for easy monitoring of metrics such as loss.
-
generator_train_step: This function handles the autoencoding training for the VQ-VAE model. It processes the input listener sequences in batches, computes the reconstruction and quantization losses, and performs backpropagation to update the model weights. Throughout each epoch, the function tracks the total training loss and logs it using TensorBoard. The optimizer's learning rate is updated at each step. -
generator_val_step: This function evaluates the VQ-VAE model on the validation set after each epoch. It calculates the average validation loss and logs it using TensorBoard. If the current validation loss is lower than the defined threshold, the model's state is saved as the best checkpoint. Additionally, this function includes an early stopping mechanism where training halts if no significant improvement is observed, ensuring efficient training..
import argparse
import json
import subprocess
import logging
import numpy as np
import os
import pdb
import scipy.io as sio
import torch
from torch import nn
from torch.autograd import Variable
import torchvision
from torch.utils.tensorboard import SummaryWriter
from vqmodules.gan_models import setup_vq_transformer, calc_vq_loss
import sys
import shutil
sys.path.append('../')
from utils.load_utils import *
from datetime import datetime
def generator_train_step(config, epoch, generator, g_optimizer, train_X,
rng, writer):
# Function to do autoencoding training for VQ-VAE
generator.train()
batchinds = np.arange(train_X.shape[0] // config['batch_size'])
totalSteps = len(batchinds)
rng.shuffle(batchinds)
total_epoch_loss = 0.0 # To accumulate loss over the entire epoch
for bii, bi in enumerate(batchinds):
idxStart = bi * config['batch_size']
gtData_np = train_X[idxStart:(idxStart + config['batch_size']), :, :]
gtData = Variable(torch.from_numpy(gtData_np),
requires_grad=False).cuda()
prediction, quant_loss, perplexity = generator(gtData, None)
g_loss = calc_vq_loss(prediction, gtData, quant_loss)
g_optimizer.zero_grad()
g_loss.backward()
g_optimizer.step_and_update_lr()
total_epoch_loss += g_loss.detach().item()
if bii % config['log_step'] == 0:
print('Epoch [{}/{}], Step [{}/{}], Loss: {:.4f}, Perplexity: {:5.4f}' \
.format(epoch, config['num_epochs'], bii, totalSteps,
g_loss.detach().item(), perplexity[0].item()))
avg_epoch_loss = total_epoch_loss / totalSteps
writer.add_scalar('Loss/train_totalLoss', avg_epoch_loss, epoch)
def generator_val_step(config, epoch, generator, g_optimizer, test_X,
currBestLoss, prev_save_epoch, tag, writer):
# Function that validates training of VQ-VAE
generator.eval()
batchinds = np.arange(test_X.shape[0] // config['batch_size'])
totalSteps = len(batchinds)
total_val_loss = 0.0 # To accumulate loss over the entire validation epoch
for bii, bi in enumerate(batchinds):
idxStart = bi * config['batch_size']
gtData_np = test_X[idxStart:(idxStart + config['batch_size']), :, :]
gtData = Variable(torch.from_numpy(gtData_np),
requires_grad=False).cuda()
with torch.no_grad():
prediction, quant_loss, perplexity = generator(gtData, None)
g_loss = calc_vq_loss(prediction, gtData, quant_loss)
total_val_loss += g_loss.detach().item()
avg_val_loss = total_val_loss / totalSteps
print('val_Epoch [{}/{}], Average Loss: {:.4f}, Perplexity: {:5.4f}' \
.format(epoch, config['num_epochs'], avg_val_loss, perplexity[0].item()))
print('----------------------------------')
writer.add_scalar('Loss/val_totalLoss', avg_val_loss, epoch)
## save model if curr loss is less than 25
if avg_val_loss < 25:
prev_save_epoch = epoch
checkpoint = {'config': args.config,
'state_dict': generator.state_dict(),
'optimizer': {
'optimizer': g_optimizer._optimizer.state_dict(),
'n_steps': g_optimizer.n_steps,
},
'epoch': epoch}
fileName = config['model_path'] + \
'{}{}_best.pth'.format(tag, config['pipeline'])
print('>>>> saving best epoch {}'.format(epoch), avg_val_loss)
torch.save(checkpoint, fileName)
# Add graph to tensorboard
return currBestLoss, prev_save_epoch, avg_val_loss
def main(args):
rng = np.random.RandomState(23456)
torch.manual_seed(23456)
torch.cuda.manual_seed(23456)
print('using config', args.config)
with open(args.config) as f:
config = json.load(f)
tag = config['tag']
pipeline = config['pipeline']
# create a timestamp string to use in the folder name
timestamp = datetime.now().strftime('%Y-%m-%d_%H-%M-%S')
# create a new folder for this experiment
experiment_dir = os.path.join('experiments/round_3', f'experiment_{timestamp}')
if not os.path.exists(experiment_dir):
os.makedirs(experiment_dir)
# Prompt the user for experiment details
experiment_type = input("What type of features do you want to quantize (speaking/listening)? ")
remarks = input("Any remarks or description about the experiment? ")
# Create a README for the experiment
with open(os.path.join(experiment_dir, "README.md"), "w") as f:
f.write(f"# Experiment Details: {timestamp}\n")
f.write(f"\n## Experiment Type: {experiment_type}\n")
f.write("\n## Hyperparameters:\n")
for key, value in config.items():
f.write(f"- {key}: {value}\n")
f.write(f"\n## Remarks:\n{remarks}\n")
# set the models and runs directories to be subdirectories of the experiment directory
models_dir = os.path.join(experiment_dir, 'models/')
runs_dir = os.path.join(experiment_dir, 'runs/')
if not os.path.exists(models_dir):
os.makedirs(models_dir)
if not os.path.exists(runs_dir):
os.makedirs(runs_dir)
# save the models_dir path in the configuration file
# config['model_path'] = models_dir
with open(args.config, 'w') as f:
json.dump(config, f, indent=4)
currBestLoss = 1e3
## can modify via configs, these are default for released model
seq_len = 32
prev_save_epoch = 0
with open(args.config) as f:
config = json.load(f)
# Save the updated configuration file in the experiment directory
config_file = os.path.basename(args.config)
experiment_config_path = os.path.join(experiment_dir, config_file)
shutil.copyfile(args.config, experiment_config_path)
# pdb.set_trace()
writer = SummaryWriter(os.path.join(runs_dir, 'debug_{}{}').format(tag, pipeline))
## setting up models and loading last runned checkpoint
fileName = config['model_path'] + \
'{}{}_best.pth'.format(tag, config['pipeline'])
load_path = fileName if os.path.exists(fileName) else None
generator, g_optimizer, start_epoch = setup_vq_transformer(args, config,
version=None, load_path=load_path)
generator.train()
config['model_path'] = models_dir
## training/validation process
_, _, train_listener, test_listener, _, _ , _ , _ ,= \
load_data(config, pipeline, tag, rng,
segment_tag=config['segment_tag'], smooth=False)
train_X = np.concatenate((train_listener[:, :seq_len, :],
train_listener[:, seq_len:, :]), axis=0)
test_X = np.concatenate((test_listener[:, :seq_len, :],
test_listener[:, seq_len:, :]), axis=0)
print('loaded listener...', train_X.shape, test_X.shape)
disc_factor = 0.0
for epoch in range(start_epoch, start_epoch + config['num_epochs']):
print('epoch', epoch, 'num_epochs', config['num_epochs'])
if epoch == start_epoch + config['num_epochs'] - 1:
print('early stopping at:', epoch)
print('best loss:', currBestLoss)
break
generator_train_step(config, epoch, generator, g_optimizer, train_X,
rng, writer)
currBestLoss, prev_save_epoch, g_loss = \
generator_val_step(config, epoch, generator, g_optimizer, test_X,
currBestLoss, prev_save_epoch, tag, writer)
print('final best loss:', currBestLoss)
if __name__ == '__main__':
parser = argparse.ArgumentParser()
parser.add_argument('--config', type=str, required=True)
parser.add_argument('--checkpoint', type=str, default=None)
parser.add_argument('--test', action='store_true')
parser.add_argument('--ar_load', action='store_true')
args = parser.parse_args()
main(args)Stage 2: Training the full model: After training the VQ-VAE and learning the codebook, we discretize the listener's past motion sequences and match them to the closest codebook entries. These are concatenated with personality embeddings and combined with speaker motion and audio features using a cross-modal transformer.
We then train the full model, including the predictor transformer, to predict future listener motion. We trained the model (including the predictor and cross-modal transformer) for 1,200 epochs, which took nearly 1.5 days on 8 GPUs. We used a learning rate of 0.001 with 50,000 warm-up steps and a batch size of 32.
Full model training code155 lines
Training the model
The training pipeline for the model involves several key steps:
-
Data Preparation:
gather_dataFunction: This function prepares the data by discretizing past listener motion sequences using a pre-trained VQ-VAE codebook. It formats the data into tensors suitable for training, including speaker and listener motion data, audio data, and personality metadata.
-
Training Step:
generator_train_stepFunction: This function trains the Predictor model, which forecasts future listener motion based on past listener motion and speaker data. It computes the loss, performs backpropagation, and updates model parameters. The function logs the loss and perplexity metrics to TensorBoard for monitoring.
-
Validation Step:
generator_val_stepFunction: This function evaluates the performance of the Predictor model on the validation dataset. It calculates the average validation loss and saves the model checkpoint if the performance improves.
-
Main Function:
mainFunction: This orchestrates the entire training process. It initializes the models and optimizers, loads data, and iterates through epochs to train and validate the model. It also manages experiment directories and configuration.
import argparse
import json
import logging
import numpy as np
import os
import shutil
import torch
from torch import nn
from torch.autograd import Variable
from torch.utils.tensorboard import SummaryWriter
from datetime import datetime
from modules.fact_model import setup_model, calc_logit_loss
from vqgan.vqmodules.gan_models import setup_vq_transformer
from utils.base_model_util import *
from utils.load_utils import *
def gather_data(config, X, Y, audio, meta, l_vq_model, patch_size, seq_len, bi):
idxStart = bi * config['batch_size']
speakerData_np = X[idxStart:(idxStart + config['batch_size']), :, :]
listenerData_np = Y[idxStart:(idxStart + config['batch_size']), :, :]
audioData_np = audio[idxStart:(idxStart + config['batch_size']), :, :]
personalityData_np = meta[idxStart:(idxStart + config['batch_size']), :]
inputs, listener_future, raw_listener, btc = \
create_data_vq(l_vq_model, speakerData_np, listenerData_np,
audioData_np, personalityData_np, seq_len,
data_type=config['loss_config']['loss_type'],
patch_size=patch_size)
return inputs, listener_future, raw_listener, btc
def generator_train_step(config, epoch, generator, g_optimizer, l_vq_model,
train_X, train_Y, train_audio, train_meta, rng, writer,
patch_size, seq_len):
generator.train()
batchinds = np.arange(train_X.shape[0] // config['batch_size'])
totalSteps = len(batchinds)
rng.shuffle(batchinds)
total_epoch_loss = 0.0
for bii, bi in enumerate(batchinds):
inputs, listener_future, _, _ = gather_data(config, train_X, train_Y,
train_audio, train_meta, l_vq_model,
patch_size, seq_len, bi)
prediction = generator(inputs,
config['fact_model']['cross_modal_model']['max_mask_len'],
-1)
cut_point = listener_future.shape[1]
logit_loss = calc_logit_loss(prediction[:, :cut_point, :800],
listener_future[:, :cut_point])
g_loss = logit_loss
g_optimizer.zero_grad()
g_loss.backward()
g_optimizer.step_and_update_lr()
total_epoch_loss += g_loss.detach().item()
if bii % config['log_step'] == 0:
print('Epoch [{}/{}], Step [{}/{}], Loss: {:.4f}, Perplexity: {:5.4f}' \
.format(epoch, config['num_epochs'], bii, totalSteps,
g_loss.detach().item(), np.exp(total_epoch_loss / totalSteps)))
avg_epoch_loss = total_epoch_loss / totalSteps
writer.add_scalar('Loss/train_totalLoss', avg_epoch_loss, epoch)
def generator_val_step(config, epoch, generator, g_optimizer, l_vq_model,
test_X, test_Y, test_audio, test_meta, currBestLoss,
prev_save_epoch, tag, writer, patch_size, seq_len):
generator.eval()
batchinds = np.arange(test_X.shape[0] // config['batch_size'])
totalSteps = len(batchinds)
total_val_loss = 0.0
for bii, bi in enumerate(batchinds):
inputs, listener_future, _, _ = gather_data(config, test_X, test_Y,
test_audio, test_meta, l_vq_model,
patch_size, seq_len, bi)
with torch.no_grad():
prediction = generator(inputs,
config['fact_model']['cross_modal_model']['max_mask_len'], -1)
cut_point = listener_future.shape[1]
logit_loss = calc_logit_loss(prediction[:, :cut_point, :800],
listener_future[:, :cut_point])
g_loss = logit_loss
total_val_loss += g_loss.detach().item()
avg_val_loss = total_val_loss / totalSteps
print('val_Epoch [{}/{}], Step [{}/{}], Loss: {:.4f}, Perplexity: {:5.4f}' \
.format(epoch, config['num_epochs'], bii, totalSteps,
avg_val_loss, np.exp(avg_val_loss)))
if avg_val_loss < currBestLoss:
prev_save_epoch = epoch
checkpoint = {'config': args.config,
'state_dict': generator.state_dict(),
'optimizer': {
'optimizer': g_optimizer._optimizer.state_dict(),
'n_steps': g_optimizer.n_steps,
},
'epoch': epoch}
fileName = config['model_path'] + \
'{}{}_best.pth'.format(tag, config['pipeline'])
currBestLoss = avg_val_loss
torch.save(checkpoint, fileName)
print('>>>> saving best epoch {}'.format(epoch), avg_val_loss)
return currBestLoss, prev_save_epoch, avg_val_loss
def main(args):
rng = np.random.RandomState(23456)
torch.manual_seed(23456)
torch.cuda.manual_seed(23456)
print('using config', args.config)
with open(args.config) as f:
config = json.load(f)
tag = config['tag']
pipeline = config['pipeline']
codebook_experiment = config['l_vqconfig']
timestamp = datetime.now().strftime('%Y-%m-%d_%H-%M-%S')
experiment_dir = os.path.join('experiments/round_4', f'experiment_{timestamp}')
if not os.path.exists(experiment_dir):
os.makedirs(experiment_dir)
remarks = input("Any remarks or description about the experiment? ")
with open(os.path.join(experiment_dir, "README.md"), "w") as f:
f.write(f"# Experiment Details: {timestamp}\n")
f.write(f"\n## Experiment Type: {experiment_type}\n")
f.write(f"\n## Code-Book: {codebook_experiment}\n")
f.write("\n## Hyperparameters:\n")
for key, value in config.items():
f.write(f"- {key}: {value}\n")
f.write(f"\n## Remarks:\n{remarks}\n")
models_dir = os.path.join(experiment_dir, 'models/')
runs_dir = os.path.join(experiment_dir, 'runs/')
if not os.path.exists(models_dir):
os.makedirs(models_dir)
if not os.path.exists(runs_dir):
os.makedirs(runs_dir)
config['model_path'] = models_dir
with open(args.config, 'w') as f:
json.dump(config, f, indent=4)
with open(args.config) as f:
config = json.load(f)
config_file = os.path.basename(args.config)
experiment_config_path = os.path.join(experiment_dir, config_file)
shutil.copyfile(args.config, experiment_config_path)
writer = SummaryWriter(os.path.join(runs_dir, 'debug_{}{}').format(tag, pipeline))
args.get_attn = False
currBestLoss = 1e3
prev_save_epoch = 0
patch_size = 8
seq_len = 32
with open(config['l_vqconfig']) as f:
l_vqconfig = json.load(f)
l_model_path = 'vqgan/' + l_vqconfig['model_path'] + \
'{}{}_best.pth'.format(l_vqconfig['tag'], l_vqconfig['pipeline'])
l_vq_model, _, _ = setup_vq_transformer(args, l_vqconfig,
load_path=l_model_path)
for param in l_vq_model.parameters():
param.requires_grad = False
l_vq_model.eval()
vq_configs = {'l_vqconfig': l_vqconfig, 's_vqconfig': None}
fileName = config['model_path'] + \
'{}{}_best.pth'.format(tag, config['pipeline'])
load_path = fileName if os.path.exists(fileName) else None- Evaluation: Evaluating the final model performance on the test set.
Evaluation code287 lines
Evaluation Metrics
The script calculates several key metrics for evaluating final model performance. Each metric is explained below:
-
L2 Distance Calculation:
l2_distanceFunction: Computes the L2 (Euclidean) distance between the reference and predicted data for both facial and body features. This provides a measure of the overall deviation between the generated and ground truth.
-
Frechet Feature Distance (FD):
calculate_frechet_feature_distanceFunction: Computes the Frechet Distance between the reference and predicted feature distributions for both face and body. This assesses the similarity of feature distributions by comparing their means and covariances, offering a more detailed comparison than L2 distance.
-
Paired Frechet Feature Distance (P-FD):
paired_frechet_feature_distanceFunction: Extends the Frechet Distance by incorporating speaker features along with listener data, comparing concatenated features of both. This helps evaluate the interaction dynamics between speaker and listener.
-
Temporal Diversity:
calculate_temporal_diversityFunction: Measures the temporal variance of predicted sequences, offering insight into the model ability to generate diverse and dynamic behaviors over time.
import argparse
import json
import numpy as np
from scipy import linalg
from utils.load_utils import *
# import pdb
def l2_distance(ref, pred):
# extracting facial features (exp and jaw_pose)
ref_face = np.concatenate((ref[:, :, :50], ref[:, :, 176:179]), axis=2)
pred_face = np.concatenate((pred[:, :, :50], pred[:, :, 176:179]), axis=2)
# extract body features (excluding exp and jaw_pose)
ref_body = np.concatenate((ref[:, :, 50:176], ref[:, :, 179:]), axis=2)
pred_body = np.concatenate((pred[:, :, 50:176], pred[:, :, 179:]), axis=2)
# calculate L2 distance for face features
face_l2 = np.mean(np.linalg.norm(pred_face - ref_face, axis=-1))
# calculate L2 distance for body features
body_l2 = np.mean(np.linalg.norm(pred_body - ref_body, axis=-1))
return face_l2, body_l2
def calculate_frechet_distance(mu1, sigma1, mu2, sigma2, eps=1e-6):
Code apapted from https://github.com/mseitzer/pytorch-fid
Copyright 2018 Institute of Bioinformatics, JKU Linz
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
The Frechet distance between two multivariate Gaussians X_1 ~ N(mu_1, C_1)
and X_2 ~ N(mu_2, C_2) is
d^2 = ||mu_1 - mu_2||^2 + Tr(C_1 + C_2 - 2*sqrt(C_1*C_2)).
Stable version by Dougal J. Sutherland.
mu and sigma are calculated through:
```
mu = np.mean(act, axis=0)
sigma = np.cov(act, rowvar=False)
```
Params:
-- mu1 : Numpy array containing the activations of a layer of the
inception net (like returned by the function 'get_predictions')
for generated samples.
-- mu2 : The sample mean over activations, precalculated on an
representative data set.
-- sigma1: The covariance matrix over activations for generated samples.
-- sigma2: The covariance matrix over activations, precalculated on an
representative data set.
Returns:
-- : The Frechet Distance.
mu1 = np.atleast_1d(mu1)
mu2 = np.atleast_1d(mu2)
sigma1 = np.atleast_2d(sigma1)
sigma2 = np.atleast_2d(sigma2)
assert mu1.shape == mu2.shape, \
'Training and test mean vectors have different lengths'
assert sigma1.shape == sigma2.shape, \
'Training and test covariances have different dimensions'
diff = mu1 - mu2
# Product might be almost singular
covmean, _ = linalg.sqrtm(sigma1.dot(sigma2), disp=False)
if not np.isfinite(covmean).all():
msg = ('fid calculation produces singular product; '
'adding %s to diagonal of cov estimates') % eps
print(msg)
offset = np.eye(sigma1.shape[0]) * eps
covmean = linalg.sqrtm((sigma1 + offset).dot(sigma2 + offset))
# Numerical error might give slight imaginary component
if np.iscomplexobj(covmean):
if not np.allclose(np.diagonal(covmean).imag, 0, atol=1e-3):
m = np.max(np.abs(covmean.imag))
raise ValueError('Imaginary component {}'.format(m))
covmean = covmean.real
tr_covmean = np.trace(covmean)
return (diff.dot(diff) + np.trace(sigma1)
+ np.trace(sigma2) - 2 * tr_covmean)
def calculate_frechet_feature_distance(ref, pred):
# extracting facial features (exp and jaw_pose)
ref_face = np.concatenate((ref[:, :, :50], ref[:, :, 176:179]), axis=2)
pred_face = np.concatenate((pred[:, :, :50], pred[:, :, 176:179]), axis=2)
# extract body features (excluding exp and jaw_pose)
ref_body = np.concatenate((ref[:, :, 50:176], ref[:, :, 179:]), axis=2)
pred_body = np.concatenate((pred[:, :, 50:176], pred[:, :, 179:]), axis=2)
# reshape features
ref_face = ref_face.reshape(-1, ref_face.shape[2])
pred_face = pred_face.reshape(-1, pred_face.shape[2])
ref_body = ref_body.reshape(-1, ref_body.shape[2])
pred_body = pred_body.reshape(-1, pred_body.shape[2])
# calculate mean and covariance for face features
mean_ref_face = np.mean(ref_face, axis=0)
mean_pred_face = np.mean(pred_face, axis=0)
cov_ref_face = np.cov(ref_face, rowvar=False)
cov_pred_face = np.cov(pred_face, rowvar=False)
# calculate mean and covariance for body features
mean_ref_body = np.mean(ref_body, axis=0)
mean_pred_body = np.mean(pred_body, axis=0)
cov_ref_body = np.cov(ref_body, rowvar=False)
cov_pred_body = np.cov(pred_body, rowvar=False)
# normalization for face features
std_face = np.std(ref_face, axis=0) + 1e-10
ref_face = (ref_face - mean_ref_face) / std_face
pred_face = (pred_face - mean_ref_face) / std_face
# normalization for body features
std_body = np.std(ref_body, axis=0) + 1e-10
ref_body = (ref_body - mean_ref_body) / std_body
pred_body = (pred_body - mean_ref_body) / std_body
# calculate Frechet distance for face features
fdist_face = calculate_frechet_distance(
mu1=np.mean(ref_face, axis=0),
sigma1=np.cov(ref_face, rowvar=False),
mu2=np.mean(pred_face, axis=0),
sigma2=np.cov(pred_face, rowvar=False),
)
# calculate Frechet distance for body features
fdist_body = calculate_frechet_distance(
mu1=np.mean(ref_body, axis=0),
sigma1=np.cov(ref_body, rowvar=False),
mu2=np.mean(pred_body, axis=0),
sigma2=np.cov(pred_body, rowvar=False),
)
return fdist_face, fdist_body
def paired_frechet_feature_distance(ref, pred, speak):
# extracting concatenated facial features (exp and jaw_pose)
ref_face = np.concatenate((ref[:, :, :50], ref[:, :, 176:179], speak[:, :, :50], speak[:, :, 176:179]), axis=-1)
pred_face = np.concatenate((pred[:, :, :50], pred[:, :, 176:179], speak[:, :, :50], speak[:, :, 176:179]), axis=-1)
# extract concatenated body features (excluding exp and jaw_pose)
ref_body = np.concatenate((ref[:, :, 50:176], ref[:, :, 179:], speak[:, :, 50:176], speak[:, :, 179:]), axis=-1)
pred_body = np.concatenate((pred[:, :, 50:176], pred[:, :, 179:], speak[:, :, 50:176], speak[:, :, 179:]), axis=-1)
# reshape features
ref_face = ref_face.reshape(-1, ref_face.shape[2])
pred_face = pred_face.reshape(-1, pred_face.shape[2])
ref_body = ref_body.reshape(-1, ref_body.shape[2])
pred_body = pred_body.reshape(-1, pred_body.shape[2])
# calculate mean and covariance for face features
mean_ref_face = np.mean(ref_face, axis=0)
mean_pred_face = np.mean(pred_face, axis=0)
cov_ref_face = np.cov(ref_face, rowvar=False)
cov_pred_face = np.cov(pred_face, rowvar=False)
# calculate mean and covariance for body features
mean_ref_body = np.mean(ref_body, axis=0)
mean_pred_body = np.mean(pred_body, axis=0)
cov_ref_body = np.cov(ref_body, rowvar=False)
cov_pred_body = np.cov(pred_body, rowvar=False)
# normalization for face features
std_face = np.std(ref_face, axis=0) + 1e-10
ref_face = (ref_face - mean_ref_face) / std_face
pred_face = (pred_face - mean_ref_face) / std_face
# normalization for body features
std_body = np.std(ref_body, axis=0) + 1e-10
ref_body = (ref_body - mean_ref_body) / std_body
pred_body = (pred_body - mean_ref_body) / std_body
# calculate Frechet distance for face features
fdist_face = calculate_frechet_distance(
mu1=np.mean(ref_face, axis=0),
sigma1=np.cov(ref_face, rowvar=False),
mu2=np.mean(pred_face, axis=0),
sigma2=np.cov(pred_face, rowvar=False),
)
# calculate Frechet distance for body features
fdist_body = calculate_frechet_distance(
mu1=np.mean(ref_body, axis=0),
sigma1=np.cov(ref_body, rowvar=False),
mu2=np.mean(pred_body, axis=0),
sigma2=np.cov(pred_body, rowvar=False),
)
return fdist_face, fdist_body
def calculate_temporal_diversity(predictions):
# Calculate temporal variance for face_features (exp and jaw_pose)
exp_features = predictions[:, :, :50] # Extracting exp features (first 50 features)
jaw_pose_features = predictions[:, :, 176:179] # Extracting jaw_pose features (indices 176 to 178)
face_features = np.concatenate((exp_features, jaw_pose_features), axis=2)
temporal_variance_face = np.var(face_features, axis=1)
# Calculate temporal variance for body_features (excluding exp and jaw_pose)
body_features_part1 = predictions[:, :, 50:176] # Features between exp and jaw_pose
body_features_part2 = predictions[:, :, 179:] # Features after jaw_pose
body_features = np.concatenate((body_features_part1, body_features_part2), axis=2)
temporal_variance_body = np.var(body_features, axis=1)
# Average the variance over both batches (B) and features (F)
diversity_score_face = np.mean(temporal_variance_face)
diversity_score_body = np.mean(temporal_variance_body)
return diversity_score_face, diversity_score_body
def main(args):
with open(args.config) as f:
config = json.load(f)
pipeline = config['pipeline']
tag = config['tag']
## setup VQ-VAE model
with open(config['l_vqconfig']) as f:
l_vqconfig = json.load(f)
vq_configs = {'l_vqconfig': l_vqconfig, 's_vqconfig': None}
## load reference data or pixie Input predictions
out_num = 1
test_X, test_Y, test_audio, test_meta, _ = \
load_test_data(config, pipeline, tag, out_num=out_num,
vqconfigs=vq_configs, smooth=True,
speaker=args.speaker,eval_mode = 'u', num_out=None)
B, T, F = test_Y.shape[0], test_Y.shape[1], test_Y.shape[2]
test_Y = test_Y.reshape(B * 2, T // 2, F)
test_X = test_X.reshape(B * 2, T // 2, F)
test_Y = test_Y[1:, : , :]
test_X = test_X[:, : , :]
pred = np.load('outputs/all_udiva/conditioned/conditioned_model_actual_pred_all_speaker.npy')
ref = test_Y[:pred.shape[0], :, :]
speak = test_X[:pred.shape[0], :, :]
# pdb.set_trace()
# L2 Distance
face_l2, body_l2 = l2_distance(ref, pred)
print("L2 Distance - face: ", round(face_l2, 3))
print("L2 Distance - Body: ", round(body_l2, 3))
# Frechet Feature Distance
fdist_face, fdist_body = calculate_frechet_feature_distance(ref, pred)
print("Frechet Distance (FD) - face: ", round(fdist_face, 3))
print("Frechet Distance (FD)- Body: ", round(fdist_body, 3))
# Paired Frechet Feature Distance with Speaker Features
pfdist_face, pfdist_body = paired_frechet_feature_distance(ref, pred, speak)
print("Paired Frechet Distance (P-FD) with Listener & Speaker - face: ", round(pfdist_face, 3))
print("Paired Frechet Distance (P-FD) with Listener & Speaker - Body: ", round(pfdist_body, 3))
# Temporal Diversity
diversity_score_face, diversity_score_body = calculate_temporal_diversity(pred)
print("Temporal Diversity Score (Variance) - face:", round(diversity_score_face, 3))
print("Temporal Diversity Score (Variance)- Body:", round(diversity_score_body, 3))
# Run the main function
if __name__ == '__main__':
parser = argparse.ArgumentParser()
parser.add_argument('--config', type=str, required = True)
parser.add_argument('--speaker', type=str, required = True)
args = parser.parse_args()
print(args)
main(args)Applications
The ability to accurately model dyadic conversations and generate listener avatars with personality-driven non-verbal cues has numerous practical applications. In this section, we explore three potential applications of our research in the fields of personalized virtual assistants, virtual customer service agents, and virtual therapy and counseling.
Personalized virtual assistants have become increasingly popular in recent years, as they offer a convenient, and intuitive way for users to interact with technology. However, most virtual assistants still rely primarily on verbal cues and lack the ability to exhibit realistic, and engaging non-verbal behaviors. By incorporating personality traits into our model, we can create virtual assistants that adapt their behavior to match the user's personality or mood, enhancing user engagement and satisfaction.
Virtual customer service agents are another promising application of our research. In today's competitive business environment, providing a personalized and engaging customer experience is essential for success. Our model can be used to create virtual agents that exhibit personality-driven non-verbal cues, allowing them to tailor their behavior to match the customer's personality and create a more effective and satisfying interaction.
Virtual therapy and counseling are emerging fields that could greatly benefit from our research. By creating virtual therapists or counselors that exhibit empathetic and supportive non-verbal behaviors, we can make virtual therapy sessions more effective and comforting for users. Our model can be used to simulate different personality types, allowing users to choose a virtual therapist or counselor that matches their own personality and preferences.
